Sterlitech, Tangential Flow Cell Kits

상품 선택옵션 1 개, 추가옵션 0 개

상품코드 17528196390392
제조사 Sterlitech
판매사 (주)코리아사이언스
배송비결제 구매금액이 100,000원 이하인 경우 배송비 3,500원이 자동 결제됩니다.
창닫기

선택옵션

선택
[1200397] [견적문의] Explorer Cross/Tangential Flow Kit, 110V, 60Hz, 1Ph  + 0원
[1200469] [견적문의] Explorer Cross/Tangential Flow Kit, 230V, 50/60Hz, 1Ph  + 0원
[1200398] [견적문의] Developer Cross/Tangential Flow Kit (includes cell), 110V, 60Hz, 1Ph  + 0원
[1200484] [견적문의] Developer Cross/Tangential Flow Kit (includes cell), 230V, 50/60Hz, 1Ph  + 0원
[1200485] [견적문의] Entrepreneur Cross/Tangential Flow Kit, 110V, 60Hz, 1Ph  + 0원
[1200486] [견적문의] Entrepreneur Cross/Tangential Flow Kit, 230V, 50/60Hz, 1Ph  + 0원
[1200456] [견적문의] Developer Cross/Tangential Flow Kit (includes cell), Ultra High Pressure, 230V, 50/60Hz, 1Ph  + 0원
[1160318] [견적문의] Explorer Cross/Tangential Flow Kit, Low Pressure, 110V, 60Hz, 1Ph  + 0원
[1160393] [견적문의] Explorer Cross/Tangential Flow Kit, Low Pressure, 230V, 50/60Hz, 1Ph  + 0원
[1200160] [견적문의] Skid System Hold-up Volume Recovery Kit, 110V/60Hz  + 0원
[1140092] [견적문의] Tube Fittings for CF Cells, SS316, 3/8 inch  + 0원
[1149417] [견적문의] Concentrate/Back Pressure Control Valve Assembly, 0-100 PSI, 1/4  + 0원
[1149420] [견적문의] Pressure Gauge with   + 0원
[1149421] [견적문의] Needle Valve with   + 0원
[1200013] [견적문의] Concentrate/Back Pressure Control Valve Assembly, 0-1000PSI, 1/4  + 0원
[1200332] [견적문의] Pressure Relief Valve Assembly (200-1500 PSI), 3/8  + 0원
[1200498] [견적문의] Analog Flowmeter Assembly, 5.0 GPM, PP Body, 316SS Float, 1/2  + 0원
[1200507] [견적문의] Pressure Relief Valve Assembly (200-1500 PSI), 1/2  + 0원
[1200540] [견적문의] Heat Exchanger, 2.5 ft2 Effective Area, 280 BTU/hr F, Rated to 1200PSI  + 0원
[1200559] [견적문의] Skid Mounting Kit for Heat Exchanger  + 0원
[1201805] [견적문의] Analog Flowmeter Assembly, 1.0 GPM, PP Body, 316SS Float, 3/8  + 0원
[1201806] [견적문의] Analog Flowmeter Assembly, 3.0 GPM, PP Body, 316SS Float, 3/8  + 0원
[1230067] [견적문의] Conical Feed Tank, 5.0 Gallon (19 liter) Stainless Steel, includes Stainless Steel Lid and   + 0원
[1240312] [견적문의] VFD, Control Techniques, S100 Series, 230V, 1/3Ph, 7.5A (Includes Sterlitech Cover)  + 0원
[1240313] [견적문의] VFD, Control Techniques, S100 Series, 120V, 1Ph, 6A (Includes Sterlitech Cover)  + 0원
[1240337] [견적문의] M-03X Hydracell, 3.1 GPM, includes 230V, 50Hz, 3 PH motor, mounted to base  + 0원
위시리스트

관련상품

등록된 관련상품이 없습니다.

상품 정보

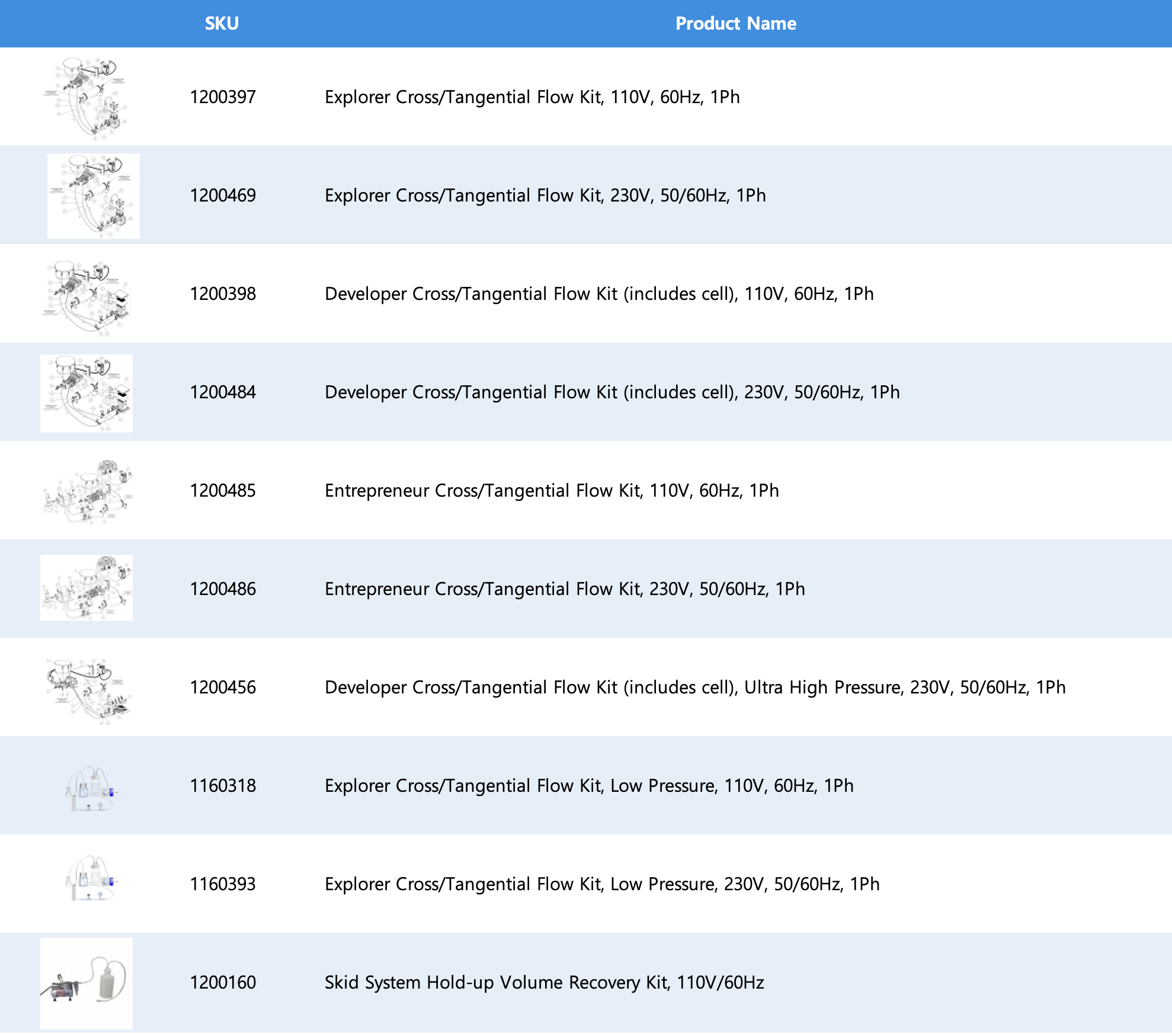

제품번호 Model 제품설명 Unit/규격 가격
(부가세포함)		 수량 장바구니
1200397 1. [견적문의] Explorer Cross/Tangential Flow Kit, 110V, 60Hz, 1Ph EA 소비자가 : 0원
(+0원)
1200469 2. [견적문의] Explorer Cross/Tangential Flow Kit, 230V, 50/60Hz, 1Ph EA 소비자가 : 0원
(+0원)

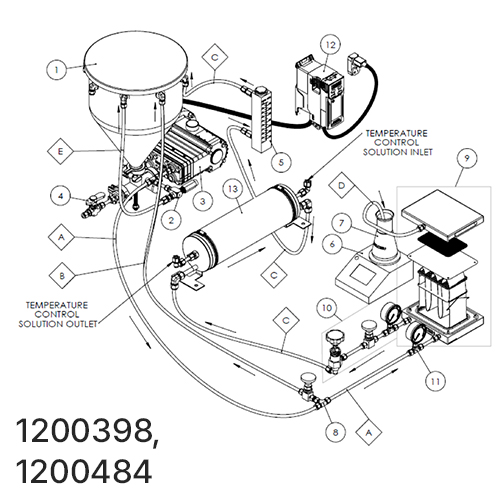

1200398 3. [견적문의] Developer Cross/Tangential Flow Kit (includes cell), 110V, 60Hz, 1Ph EA 소비자가 : 0원
(+0원)
1200484 4. [견적문의] Developer Cross/Tangential Flow Kit (includes cell), 230V, 50/60Hz, 1Ph EA 소비자가 : 0원
(+0원)

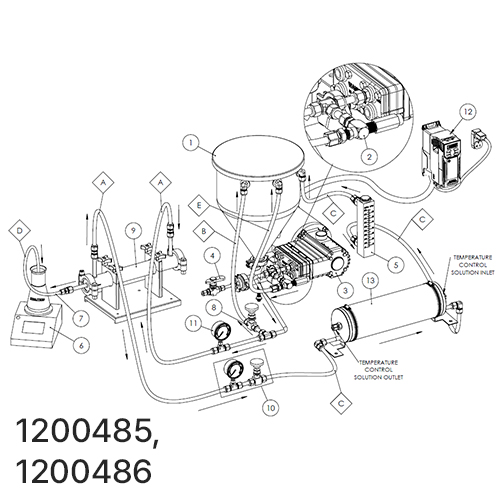

1200485 5. [견적문의] Entrepreneur Cross/Tangential Flow Kit, 110V, 60Hz, 1Ph EA 소비자가 : 0원
(+0원)
1200486 6. [견적문의] Entrepreneur Cross/Tangential Flow Kit, 230V, 50/60Hz, 1Ph EA 소비자가 : 0원
(+0원)

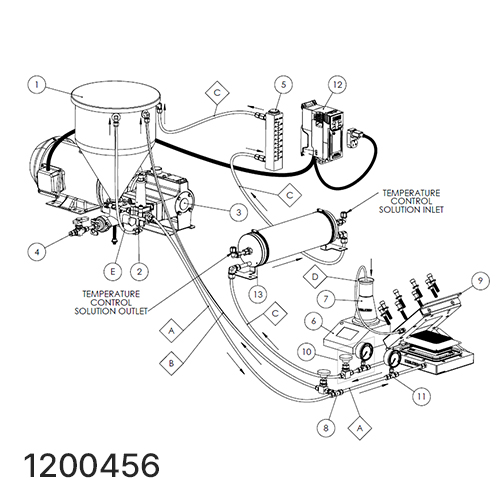

1200456 7. [견적문의] Developer Cross/Tangential Flow Kit (includes cell), Ultra High Pressure, 230V, 50/60Hz, 1Ph EA 소비자가 : 0원
(+0원)

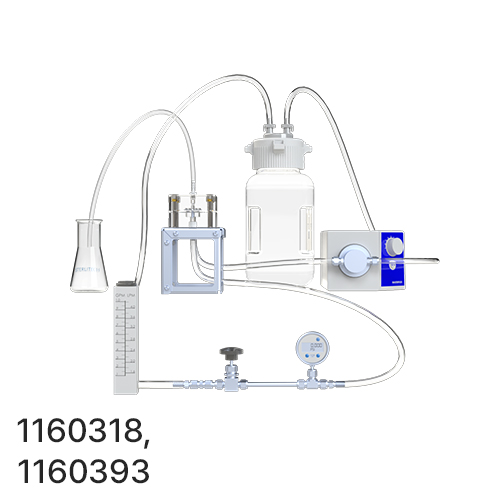

1160318 8. [견적문의] Explorer Cross/Tangential Flow Kit, Low Pressure, 110V, 60Hz, 1Ph EA 소비자가 : 0원
(+0원)
1160393 9. [견적문의] Explorer Cross/Tangential Flow Kit, Low Pressure, 230V, 50/60Hz, 1Ph EA 소비자가 : 0원
(+0원)

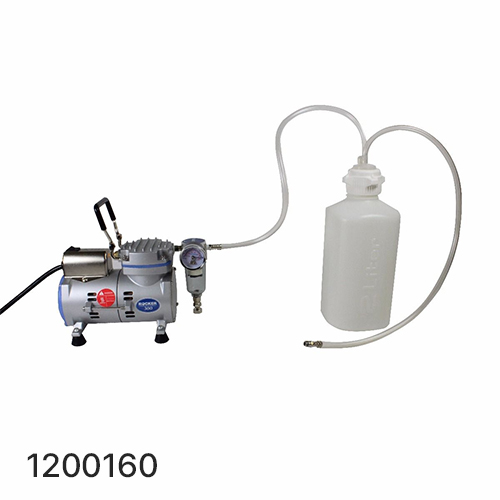

1200160 10. [견적문의] Skid System Hold-up Volume Recovery Kit, 110V/60Hz EA 소비자가 : 0원
(+0원)

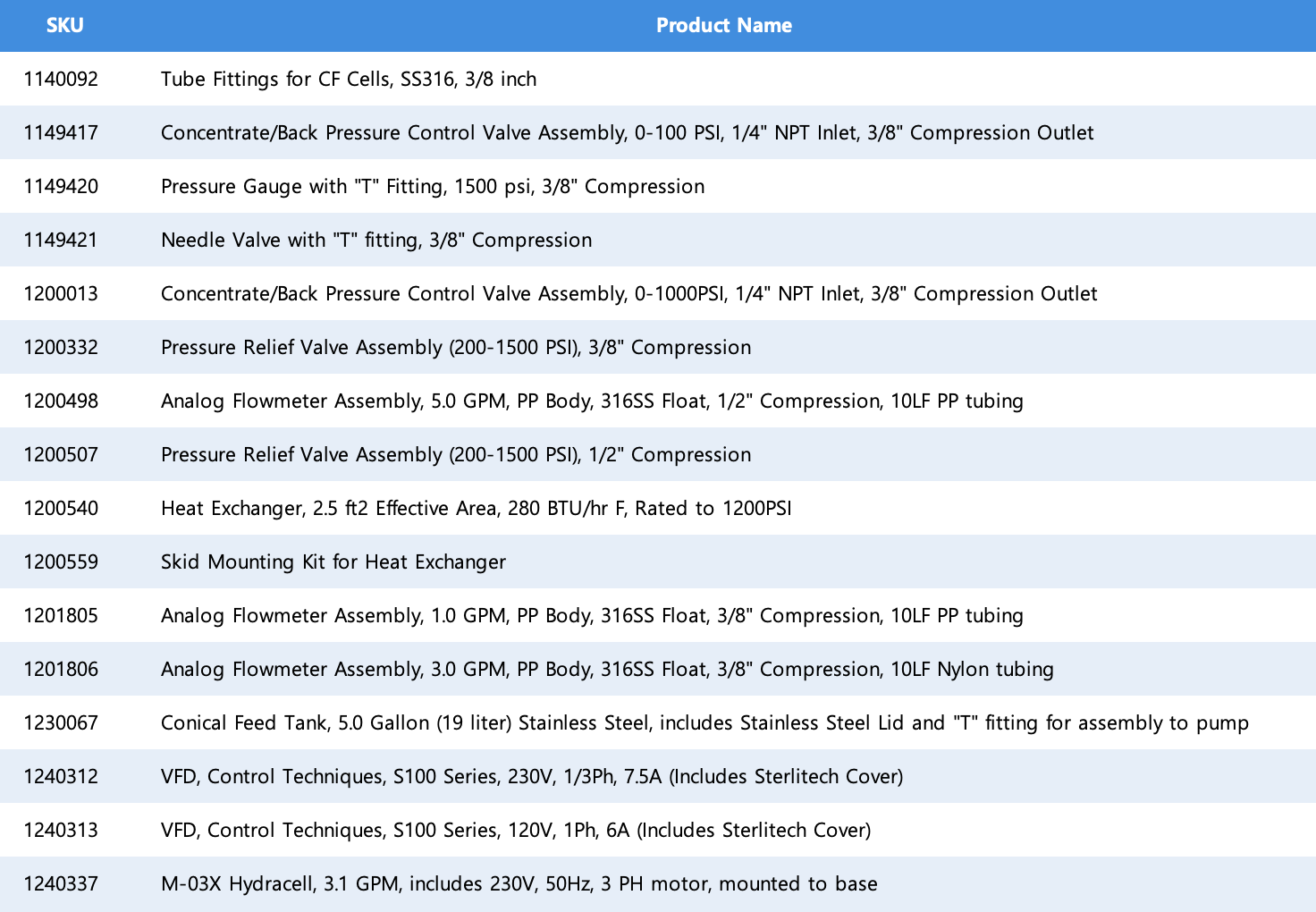

1140092 11. [견적문의] Tube Fittings for CF Cells, SS316, 3/8 inch EA 소비자가 : 0원
(+0원)
1149417 12. [견적문의] Concentrate/Back Pressure Control Valve Assembly, 0-100 PSI, 1/4 EA 소비자가 : 0원
(+0원)
1149420 13. [견적문의] Pressure Gauge with EA 소비자가 : 0원
(+0원)
1149421 14. [견적문의] Needle Valve with EA 소비자가 : 0원
(+0원)
1200013 15. [견적문의] Concentrate/Back Pressure Control Valve Assembly, 0-1000PSI, 1/4 EA 소비자가 : 0원
(+0원)
1200332 16. [견적문의] Pressure Relief Valve Assembly (200-1500 PSI), 3/8 EA 소비자가 : 0원
(+0원)
1200498 17. [견적문의] Analog Flowmeter Assembly, 5.0 GPM, PP Body, 316SS Float, 1/2 EA 소비자가 : 0원
(+0원)
1200507 18. [견적문의] Pressure Relief Valve Assembly (200-1500 PSI), 1/2 EA 소비자가 : 0원
(+0원)
1200540 19. [견적문의] Heat Exchanger, 2.5 ft2 Effective Area, 280 BTU/hr F, Rated to 1200PSI EA 소비자가 : 0원
(+0원)
1200559 20. [견적문의] Skid Mounting Kit for Heat Exchanger EA 소비자가 : 0원
(+0원)
1201805 21. [견적문의] Analog Flowmeter Assembly, 1.0 GPM, PP Body, 316SS Float, 3/8 EA 소비자가 : 0원
(+0원)
1201806 22. [견적문의] Analog Flowmeter Assembly, 3.0 GPM, PP Body, 316SS Float, 3/8 EA 소비자가 : 0원
(+0원)
1230067 23. [견적문의] Conical Feed Tank, 5.0 Gallon (19 liter) Stainless Steel, includes Stainless Steel Lid and EA 소비자가 : 0원
(+0원)
1240312 24. [견적문의] VFD, Control Techniques, S100 Series, 230V, 1/3Ph, 7.5A (Includes Sterlitech Cover) EA 소비자가 : 0원
(+0원)
1240313 25. [견적문의] VFD, Control Techniques, S100 Series, 120V, 1Ph, 6A (Includes Sterlitech Cover) EA 소비자가 : 0원
(+0원)
1240337 26. [견적문의] M-03X Hydracell, 3.1 GPM, includes 230V, 50Hz, 3 PH motor, mounted to base EA 소비자가 : 0원
(+0원)
← 좌우로 스크롤하여 더 많은 정보를 확인하세요 →







Sterlitech, Tangential Flow Cell Kits







Sterlitech offers do-it-yourself (DIY) kits for operating our Membrane Test Cells as well as fully assembled systems.


The kits require assembly and do NOT include:


1) Wiring of the pump/motor and VFD

2) A main power switch

3) Membrane test cells

4) System mounting

5) Premade NPT and compression fitting connections between component assemblies

6) Scale and permeate collector

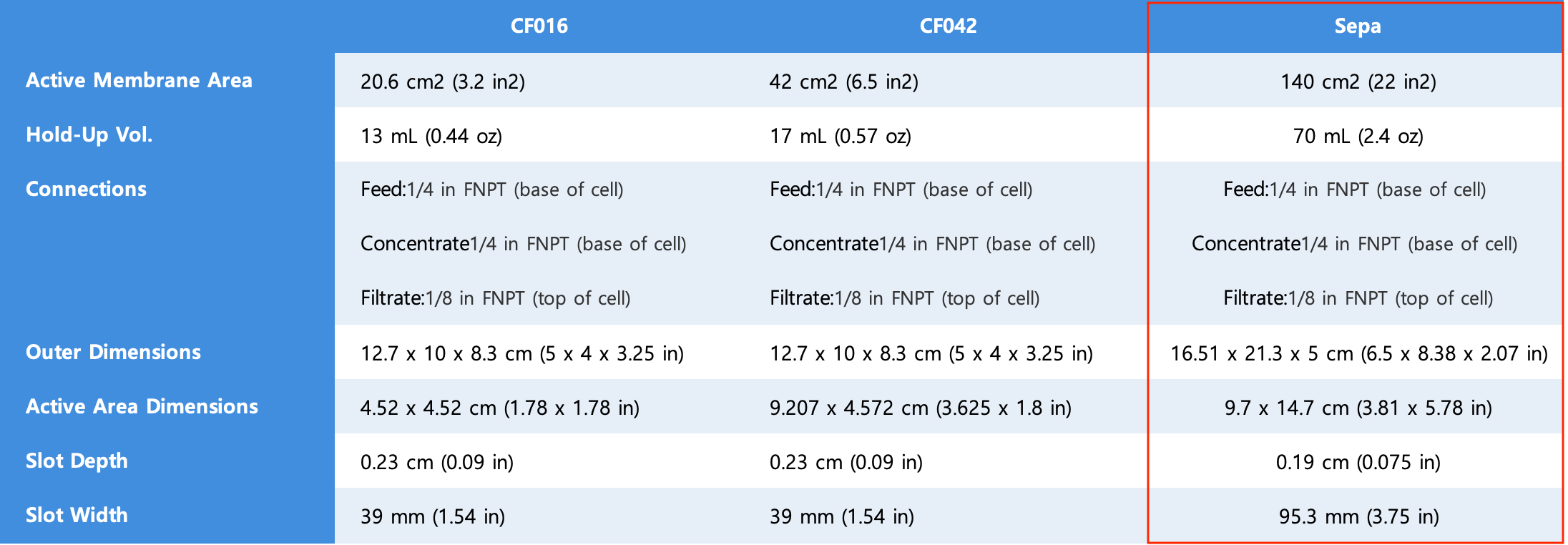

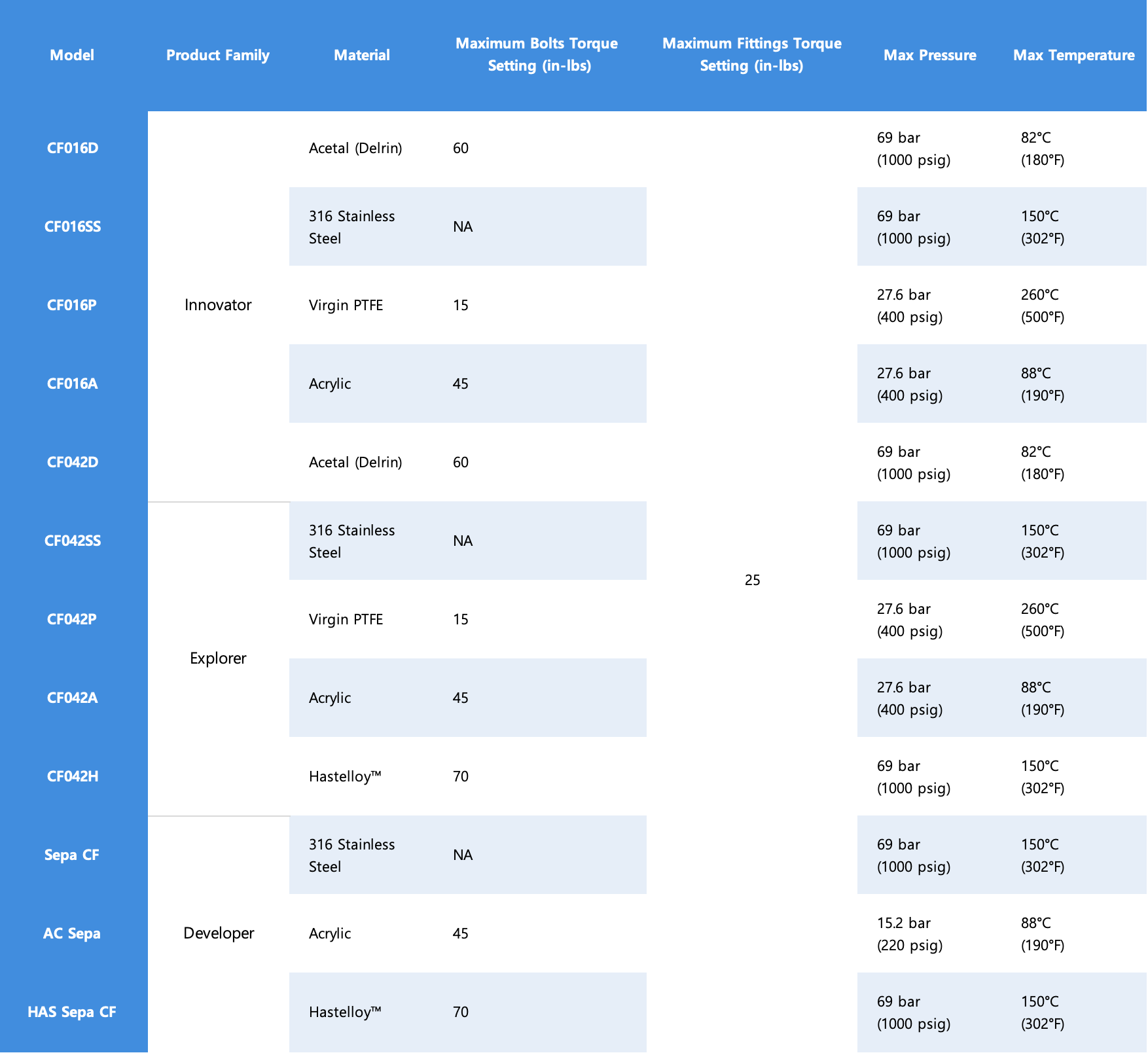

Specifications












Accessory





Applications


• Membrane testing and evaluation

• Biological or biopharmaceutical processing

• Concentration of fruit juices and extracts

• Food and beverage processing

• Desalination of brackish water or seawater

• Purification of rinse water in electroplating tanks

• Municipal or industrial water and wastewater purification



Product Attachments

Cross Tangential Flow Filtration Handbook (3.06 MB)
MPD Product Families (1.67 MB)
CF042A Flow Diagram (158.09 kB)
