Cat. No	제품메뉴얼	구매규격서	인증서	MSDS	ETC.
C19-162-171
C19-162-610
C19-162-640
P02-162-684
P02-162-687

• Cat. No.	Model	형식	전극
  C19-162-171	S213-Meter	Meter only	X

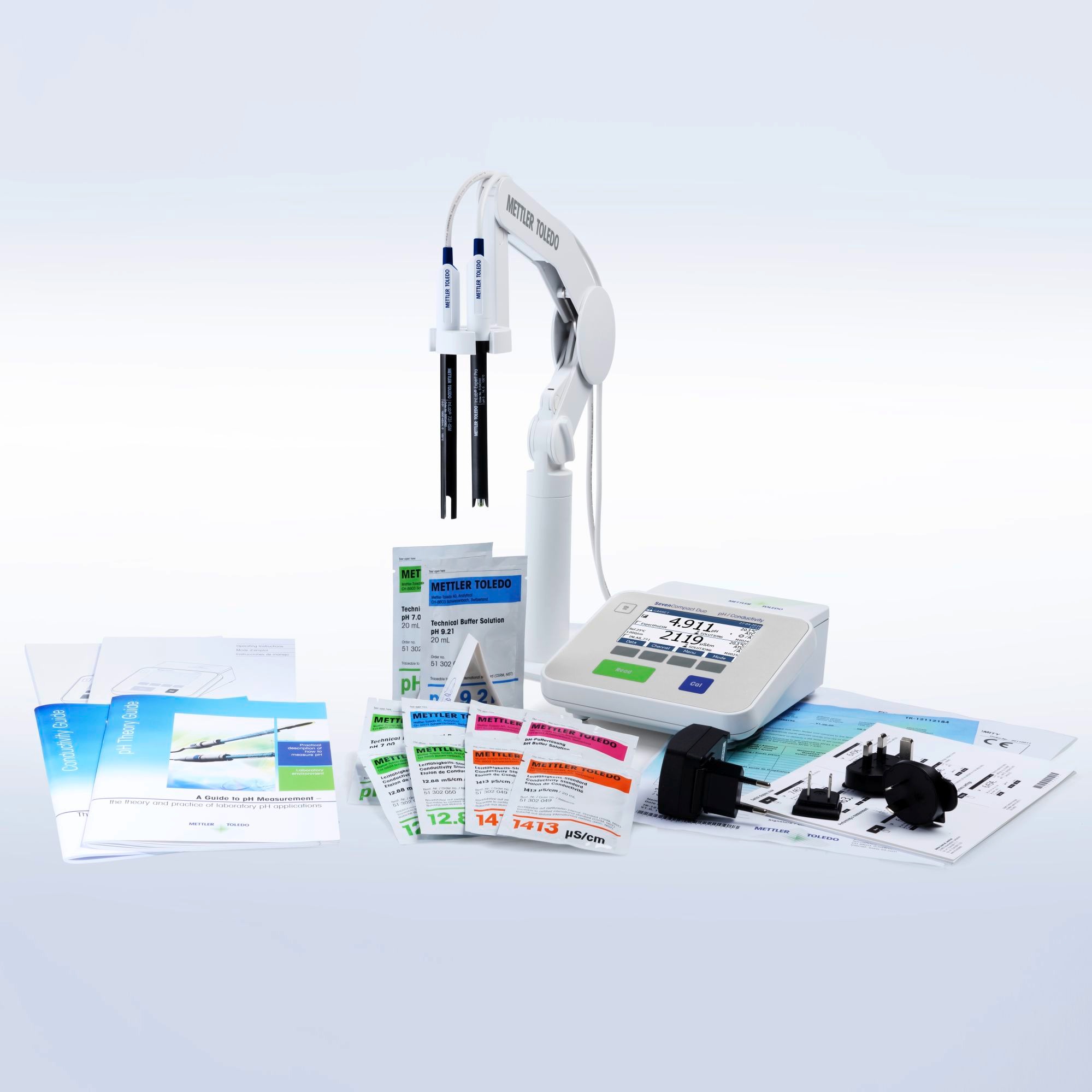

  C19-162-174	S213-Standard(Kit)	Basic	InLab® Expert Pro-ISM & InLab®731-ISM
  C19-162-177	S213-Water(Kit)	초순수용	InLab® Pure Pro-ISM & InLab® 741-ISM

  S213		Measuring range	Resolution	Accuracy
  pH		-2.000 … 20.000	0.001/0.01/0.1	±0.002
  mV		-2000.0 … 2000.0	0.1/1	±0.1 mV in -1000 … 1000 mV; ±0.2 mV outside
  Rel. mV		-2000.0 … 2000.0	0.1/1	±0.1 mV in -1000 … 1000 mV; ±0.2 mV outside
  Conductivity		0.001 μS/cm … 1000 mS/cm	0.001 … 1	± 0.5%
  TDS		0.00 mg/L...1000 g/L	0.01 … 1	± 0.5%
  Salinity		0.00… 80.00 psu/ppt	0.00 … 1.0	± 0.5%
  Resistivity		0.00…100.0 MΩ•cm	0.00 … 1.0	± 0.5%
  Conductivity ash		0.000…2022%	0.001 … 1	± 0.5%
  Temperature MTC/ATC		-5.0 (-30.0) ... 130.0 °C (MTC) ATC	0.1 °C	± 0.1 °C
  Calibration	Calibration points	Conductivity 1; pH Max. 5
  	Cond. Standards and Buffer groups	8 pre-defined pH buffers and 13 pre-defined
  	Buffer recognition	1 user defined each
  	Isopotential point	pH 7.00
  	Temperature capture	Automatic* and manual
  	Calibration reminder	User-configurable
  	Electrode status icon	Shows quality of last calibration
  	Manual input of cell constant	Yes
  	Display of cell constant	In Conductivity and dual channel mode
  Measurement	Choice of endpoint formats	Automatic, manual, timed
  	Choice of stability criteria (pH only)	Fast, standard, strict
  	Choice of pH decimal places	1.111, 1.11, 1.1
  	Temperature capture	Automatic* and manual
  	Serial measurements	Time interval, user-configurable
  	Choice of reference temperature	20 °C or 25 °C
  	Choice of temperature compensation	Linear, non-linear, off, pure-water
  System and GLP	Menu guidance	12 languages
  	Display color scheme	Blue, red, green, grey
  	Time and date	2 time formats, 4 date formats
  	PIN protection	Login, deletion of data, system settings
  	Measurement limits	User-defined
  	Instrument modes	Routine mode / expert mode
  	ID input	User ID, sample ID, sensor ID, sensor
  	ID input automation	Barcode reader and keyboard (USB)
  Regulations	Pure & ultra-pure water	USP/EP compliant
  	Bioethanol	ABNT NBR 10547:2006
  	Sugar analysis	ICUMSA GS2/3-17 and GS 1/3/4/7/8-13
  Data processing	Data storage	2000 measurements
  	Print formats	Short, normal, GLP
  	Data Export	USB-stick, EasyDirect pH PC software
  Connectors	pH Sensor input	BNC (impedance > 3x1012 Ω)
  	Temperature sensor input	Cinch/RCA (NTC30 kΩ or Pt1000)
  	Reference input	2 mm Ref.
  	Digital sensor input	Mini-LTW
  	Conductivity input	Mini-DIN
  	Conductivity input	RS232, USB-A, USA-B
  	Stirrer connector	Mini-DIN
  General	Power requirements	DC 9–12 V/ 2.5 W
  	Size/weight	204 x 174 x 74 mm, 890 g
  	Display	Color TFT
  Ambient conditions	Temperature	5 … 40 °C
  	Relative humidity	5 … 80% (non-condensing)
  	Installation category	II
  	Pollution degree	2
  	Altitude	Up to 2000 m above sea level
  	Protection level	IP54
  	Housing	ABS/PC reinforced
  	Window	Polymethyl methacrylate (PMMA)
  	Keypad	Membrane keypad: Polyethylene terephthalate (PET)

  General accessories for SevenCompact™

  Cat. No.	Model	Description
  P08-162-011	30019823	uPlace™: Electrode holder (included in standard delivery)
  P08-162-014	30019824	Protective cover (included in standard delivery)
  C19-162-902	11120270	Mains adapter 12V (included in standard delivery)
  C19-162-918	21901297	Barcode reader body
  C19-162-922	21901309	USB cable for barcode reader (not included with barcode reader body)
  P08-162-017	30323214	EasyDirect™ pH
  C19-162-926	51191926	USB A-B cable 1.8 m for EasyDirect™ pH PC software (not included with EasyDirect™ pH PC software)

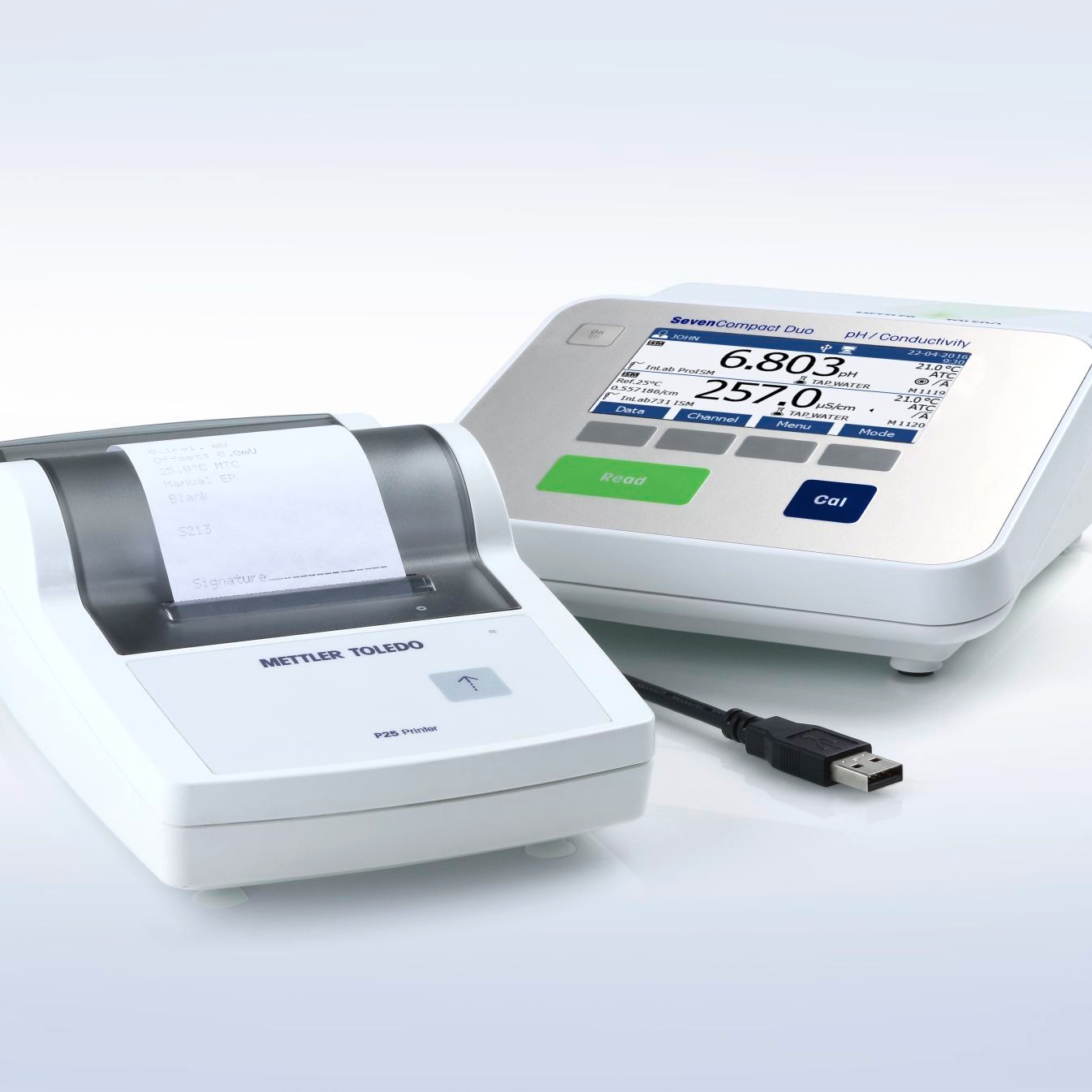

  M06-162-520	30702998	USB-P25 printer (including USB and power cable)
  P08-162-020	30040000	uMix magnetic stirrer

  Sensors for SevenCompact™ Conductivity

  Cat. No.	Model	Description
  C19-162-522	30014092	InLab 731-ISM, 4-electrode graphite conductivity sensor, ATC
  C19-162-542	30014094	InLab® 741-ISM, 2-electrode steel conductivity sensor, ATC
  C19-162-555	30014097	InLab® Trace, high-accuracy sensor for low conductivities, ATC
  C19-162-560	30014098	Flow-Cell for InLab® Trace

  Sensors for SevenCompact™ pH

  Cat. No.	Model	Description
  P02-162-501	30014096	InLab Expert Pro-ISM, rugged 3-in-1 pH sensor, PEEK shaft, ATC
  P02-162-523	51344055	InLab® Routine Pro-ISM, 3-in-1 pH sensor, glass shaft, ATC, refillable
  P02-162-563	51344163	InLab® Micro Pro-ISM, 3-in-1 pH sensor, glass shaft, 5 mm shaft diameter, ATC,
  P02-162-535	51344172	InLab® Pure Pro-ISM, 3-in-1 pH sensor, glass shaft, immovable glass sleeve, ATC, refillable
  P02-162-544	51344072	InLab® Science Pro-ISM, 3-in-1 pH sensor, glass shaft, movable glass sleeve, ATC, refillable
  P02-162-556	51344155	InLab® Solids Pro-ISM, 3-in-1 pH sensor, glass shaft, open junction, sharp membrane, ATC
  P02-162-772	30281896	ISM® cable 1.2 m, BNC/RCA-MultiPin™

  pH buffers and conductivity standard solutions

  Cat. No.	Model	Description
  C19-162-610	51302049	1413 μS/cm standard conductivity solution in side-sealed sachets, 30 x 20 mL
  C19-162-640	51302050	12.88 mS/cm standard conductivity solution in side-sealed sachets, 30 x 20 mL
  P02-162-684	51302069	pH 4.01 buffer solution in side-sealed sachet, 30 x 20 mL
  P02-162-687	51302047	pH 7.00 buffer solution in side-sealed sachets, 30x20 mL
  P02-162-690	51302070	pH 9.21 buffer solution in side sealed sachets, 30x20 mL
  P02-162-691	51302079	pH 10.00 buffer solution in side sealed sachets, 30x20 mL
