Cat. No	제품메뉴얼	구매규격서	인증서	MSDS	ETC.
H01-02-001
H01-02-002

• Cat. No.	Model	Type	Speed
  H01-02-001	HGD-10	Digital	2,000 ~ 27,000 rpm

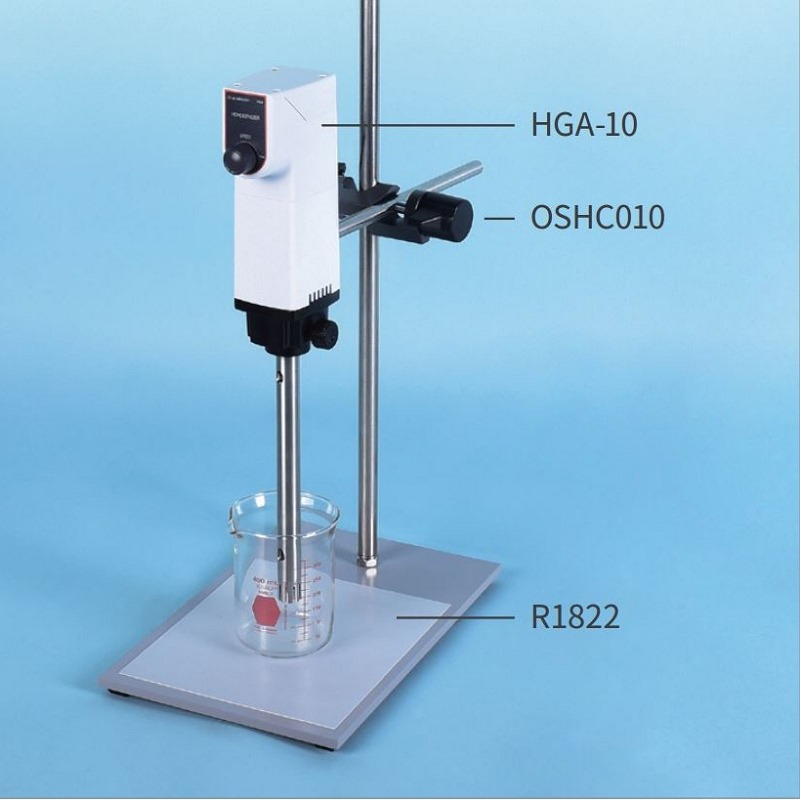

  H01-02-002	HGA-10	Analog	About 27,000 rpm

  Cat. No.		H01-02-001	H01-02-002
  Model		HGD-10	HGA-10
  Capacity		2.5 L
  Speed Range		2000 ~ 27,000 rpm	About 27,000 rpm
  Display		3 Digit FND	-
  Safety		Motor Over Heat Protector
  Material		ABS & Powder Coated Aluminum
  Dispersing Tool Dia.		8, 10, 18, 25 mm
  Extension Arm Size		Φ12.7 x L250 mm
  Environmental Conditions		Temp. 5 ~ 40 °C, Humidity < 80 %
  Electic Supply	Power	1 Phase, 220Vac, 50/60Hz
  	Consumption	400 W

  Homogenizer Tool

  Cat. No.	Model	Description

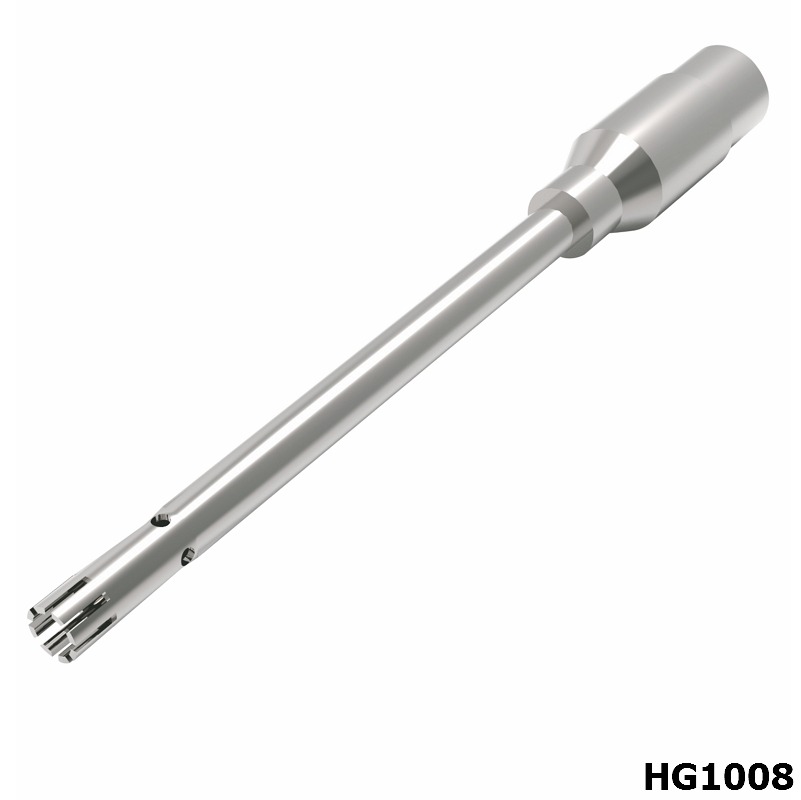

  H01-04-190	HG1008	Homogenizer Tool, Rotor Φ6.1, Stator Φ8, 1 ~ 50 ml

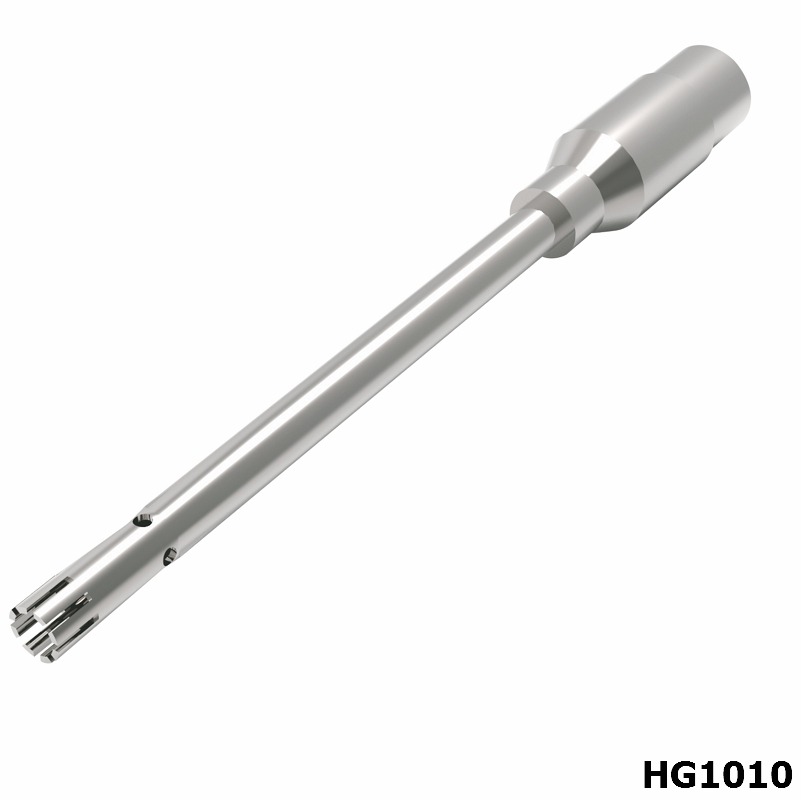

  H01-04-191	HG1010	Homogenizer Tool, Rotor Φ7.5, Stator Φ10, 1 ~ 100 ml

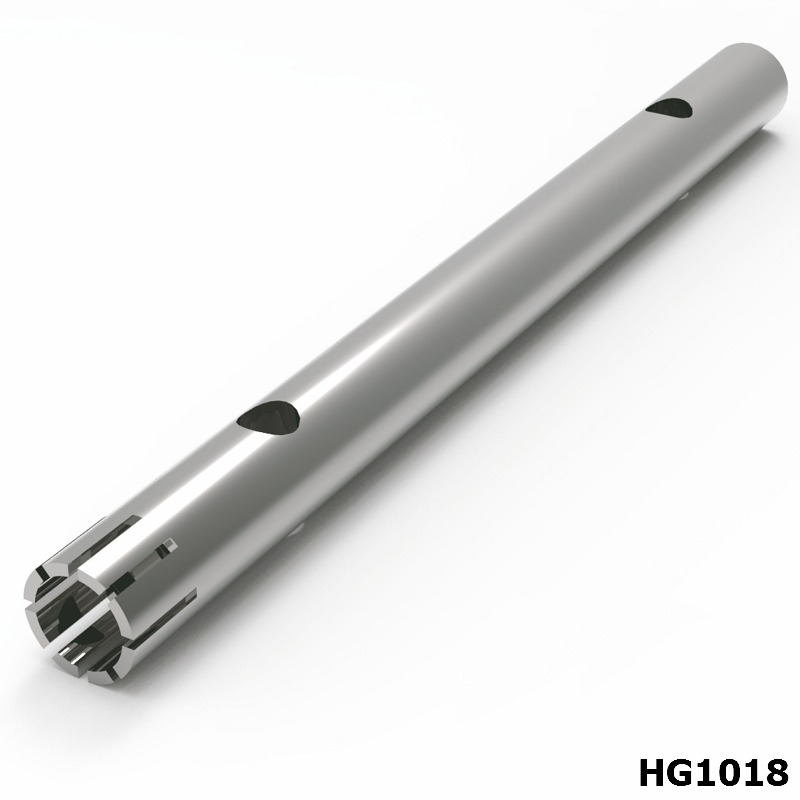

  H01-04-192	HG1018	Homogenizer Tool, Rotor Φ12.7, Stator Φ18, 10 ~ 1000 ml

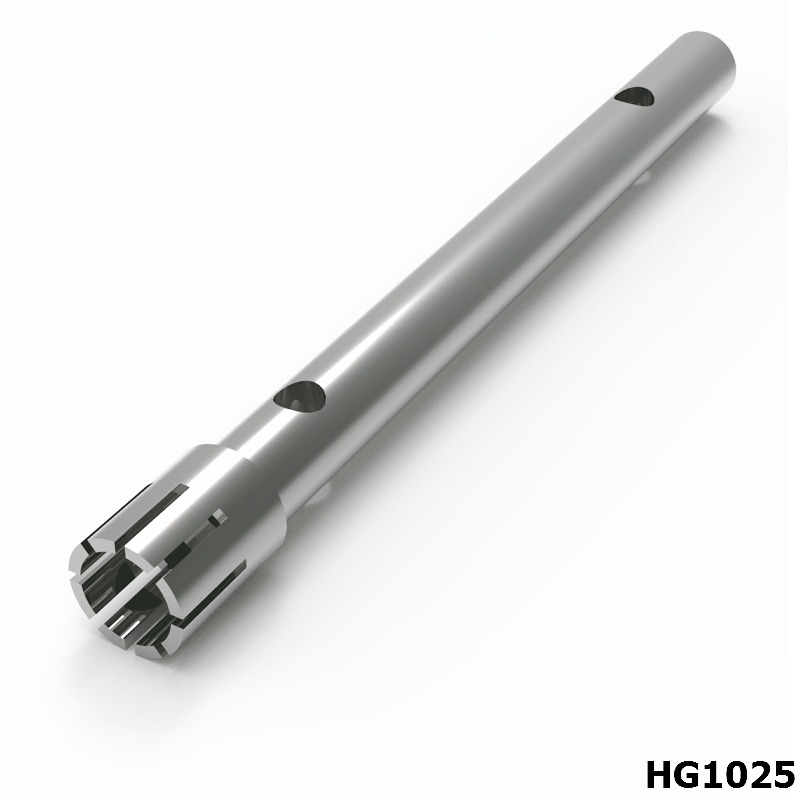

  H01-04-193	HG1025	Homogenizer Tool, Rotor Φ17 ,Stator Φ25, 50 ~ 2500 ml

  Clamp & Stand

  Cat. No.	Model	Description

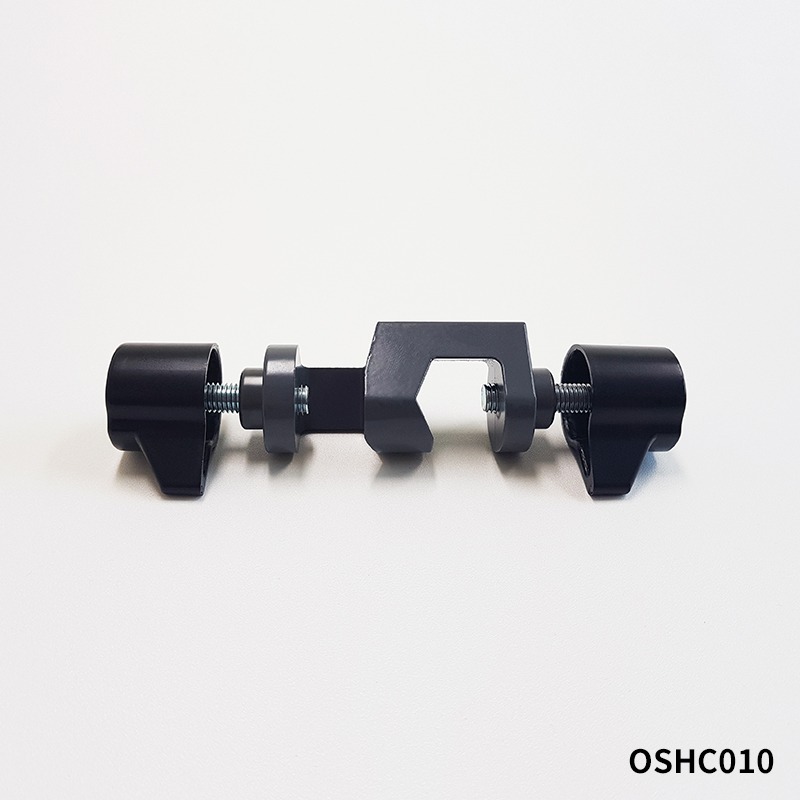

  C09-04-010	OSHC010	Universal Clamp

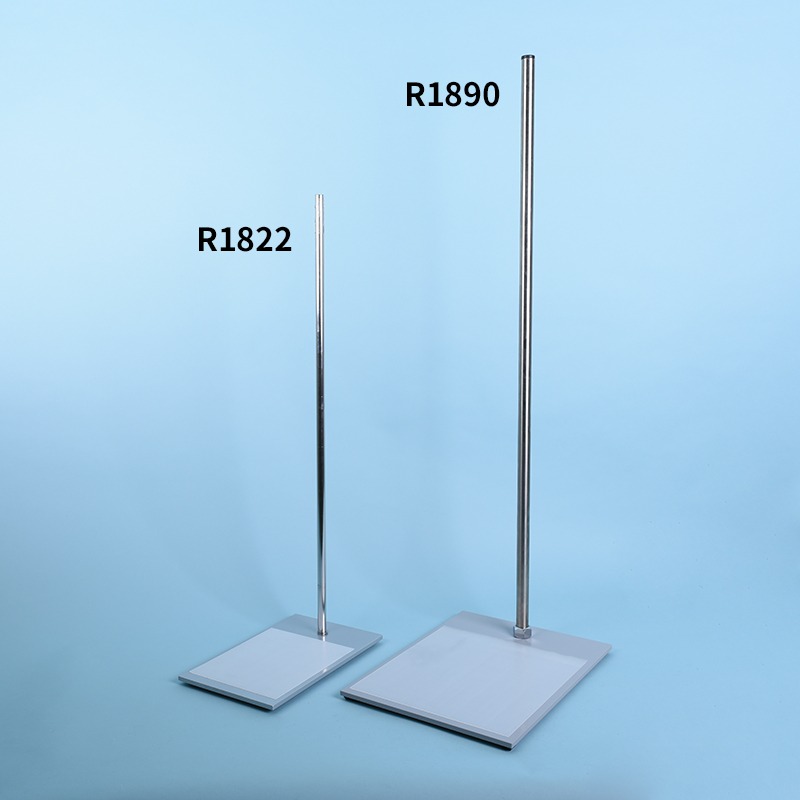

  H01-05-968	R1822	Plate Stand 200×315×800 mm
  S09-53-555	R1890	Plate Stand 300×400×1000 mm

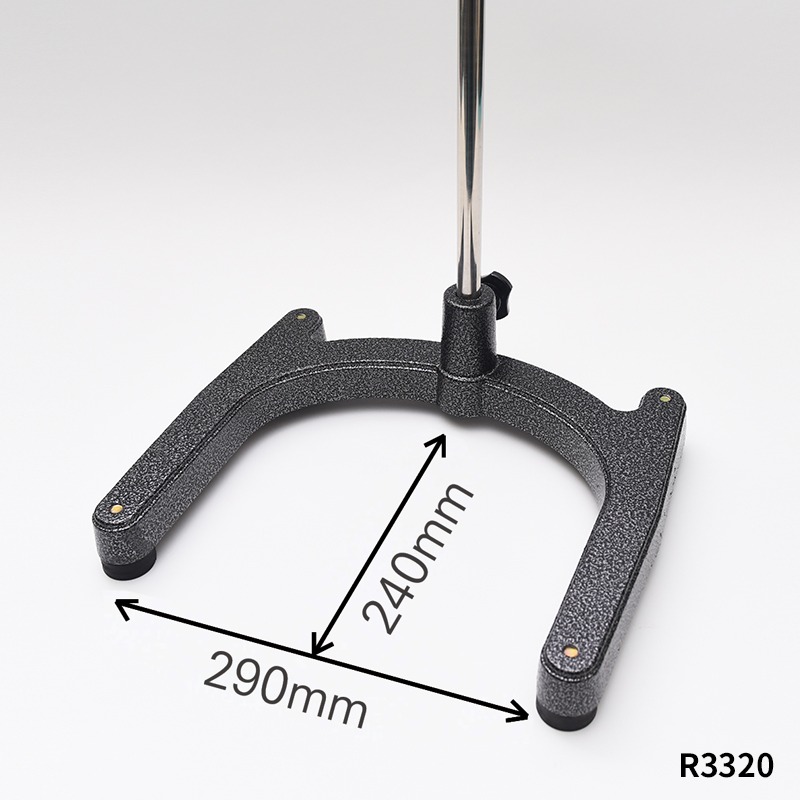

  S09-53-567	R3320	Heavy Duty Stand
