Cat. No	제품메뉴얼	구매규격서	인증서	MSDS	ETC.
H01-05-030

• Cat. No	Model	Type	조절방식
  H01-05-007	3646000	UTTD	Scale (0 ~ 9)

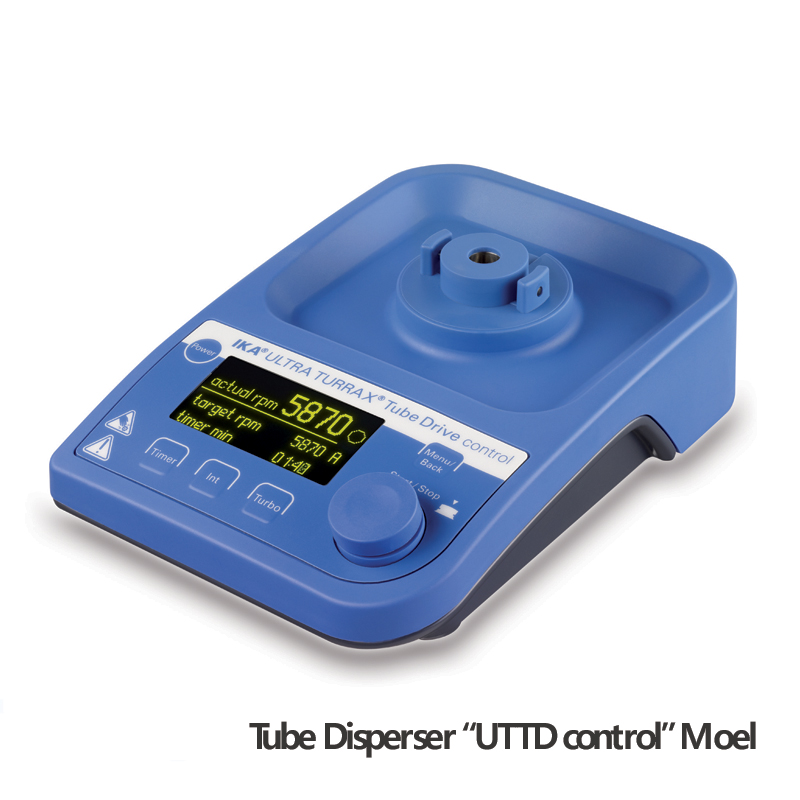

  H01-05-030	25005981	UTTD P control Workstation	Digital

  Cat. No.		H01-05-007	H01-05-030
  Model		3646000	25005981
  Type		UTTD	UTTD P control
  Motor Rating in/out		20W / 17W	36W / 28W
  Viscosity max. [mPas]		5000
  Volume Range	20ml Tube	2 ~ 15 ml
  	50ml Tube	15 ~ 50 ml
  Reversible		X	O
  Speed Display		Scale (0 ~ 9)	Digital (deviation 3%)
  Display		LED (Timer)	OLED
  Speed Range		300 ~ 6000 rpm	400 ~ 8000rpm
  Speed Control		Stepless	10 RPM Steps
  Timer		1 ~ 59 sec : 300 ~ 6000 rpm 1 ~ 29 min : 300 ~ 4000 rpm	10 sec ~ 30 min
  Size		w100×d160×h40 mm	w122×d178×h54mm
  Weight		0.75 kg	1.5 kg
  USB Interface		X	O
  Precess Type		Batch
  Noise without element		50 dB(A)
  운용가능온도 / 습도		5-40 °C / 80%
  방진/ 방수 보호 등급		IP20
  Power		110V ~ 240V, 50/60 Hz
  Power Input (W)		20	36
  DC Voltages (V=)		24
  소비전력 (mA)		800	1500

  Optional Tube

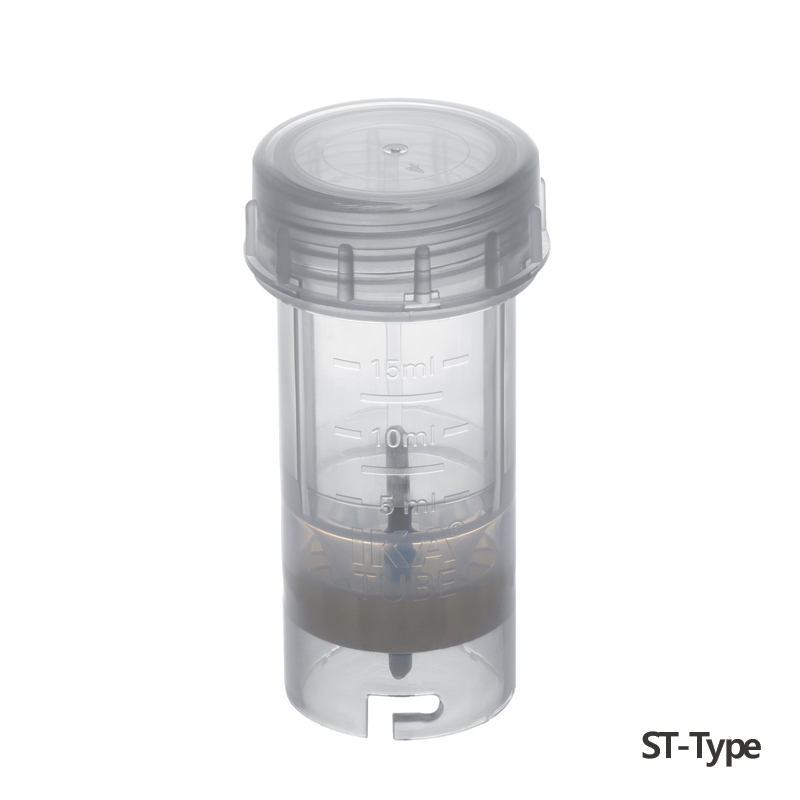

  ST Tube with stirring devices

  Cat. No	Model	Tube Type	용량
  H01-05-711	3703000	ST-20	20 ml
  H01-05-771	3700500	ST-20
  H01-05-723	3699500	ST-50	50 ml
  H01-05-780	3701500	ST-50

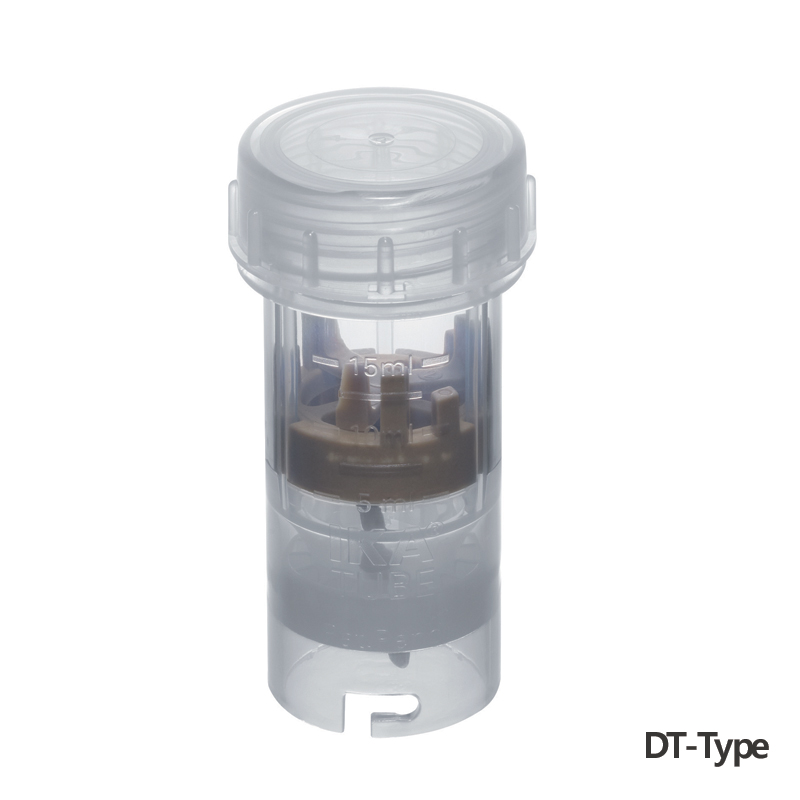

  DT tube with rotor-stator element

  Cat. No	Model	Tube Type	용량
  H01-05-714	3703100	DT-20	20 ml
  H01-05-774	3700600	DT-20 Sterile
  H01-05-775	20003207	DT-20 ECO
  H01-05-726	3699600	DT-50	50 ml
  H01-05-786	3701600	DT-50 Sterile
  H01-05-787	20003213	DT-50 ECO

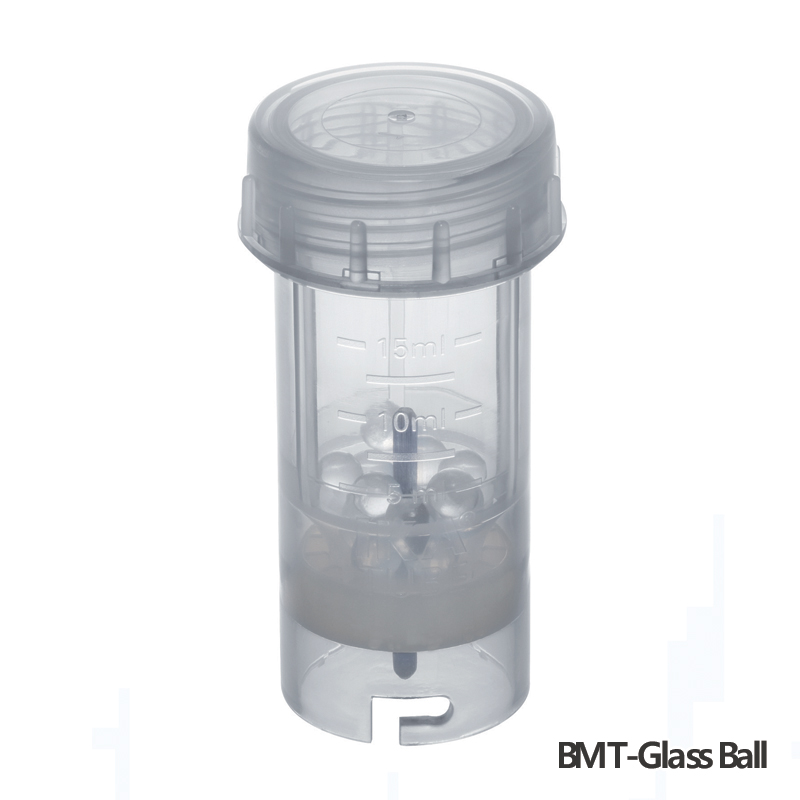

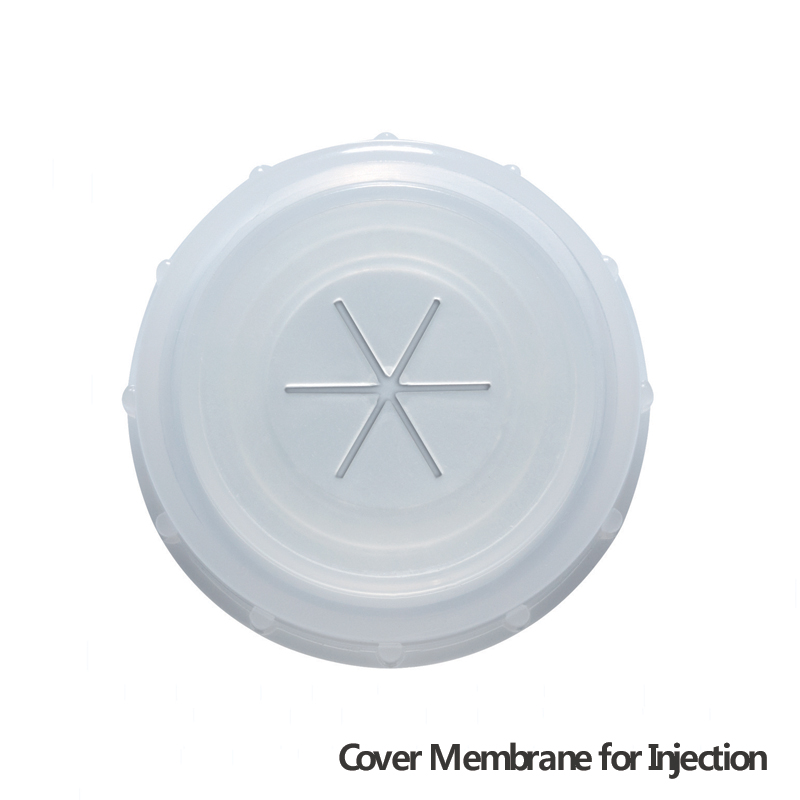

  BMT-S/G Tube for grinding with stainless steel (S) or glass (G) ballsTube with dissolver element membrane lidCover for BMT Tube (Membrane)

  Cat. No	Model	Type	용량
  H01-05-704	3749900	TC-20-M, with PierceableMembrane	20 ml
  H01-05-707	3750000	TC-50-M, with PierceableMembrane	50 ml

  With Gamma Sterilized

  Cat. No	Model	Tube Type	용량
  H01-05-771	3700500	ST-20	20 ml
  H01-05-774	3700600	DT-20

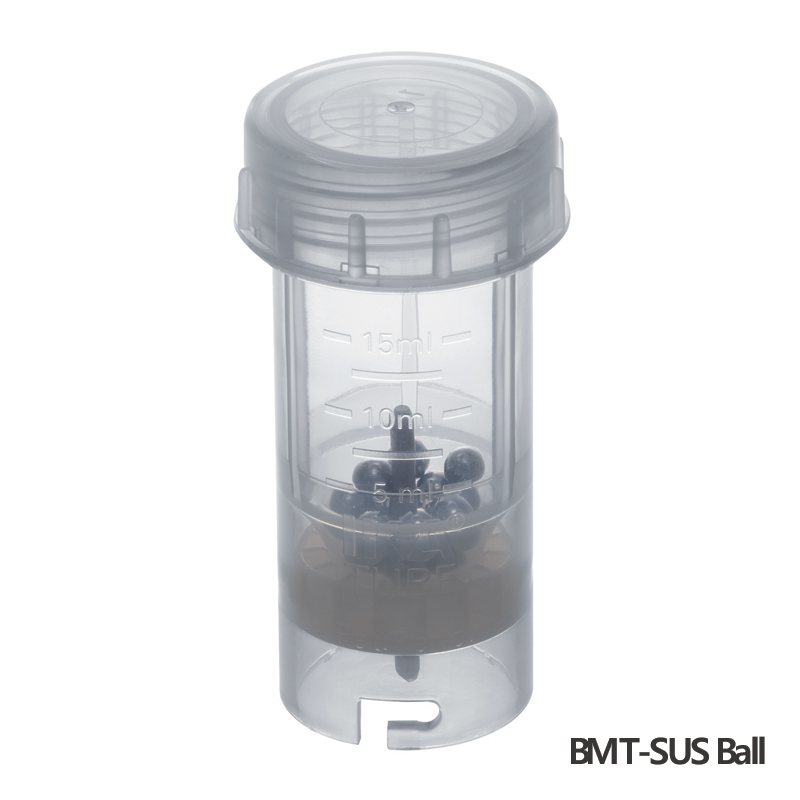

  H01-05-777	3700700	BMT-20-SUS Ball
  H01-05-780	3701500	ST-50	50 ml
  H01-05-786	3701600	DT-50
  H01-05-789	3701700	BMT-20-SUS Ball
