Sterlitech, Developer, Bench-scale cross/tangential flow cell

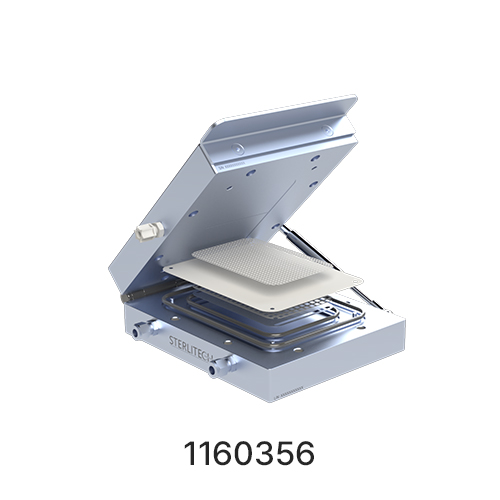

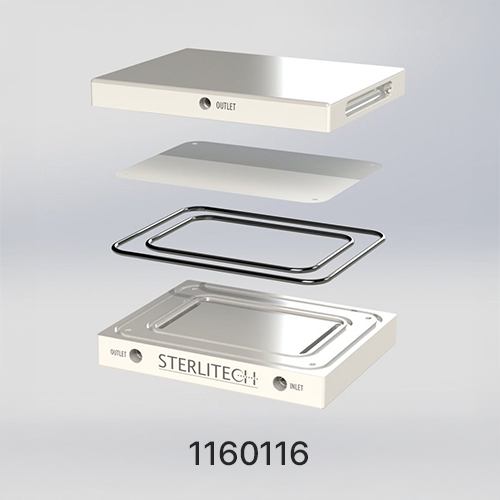

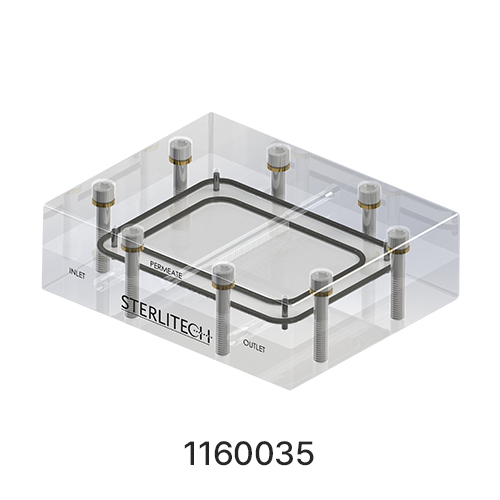

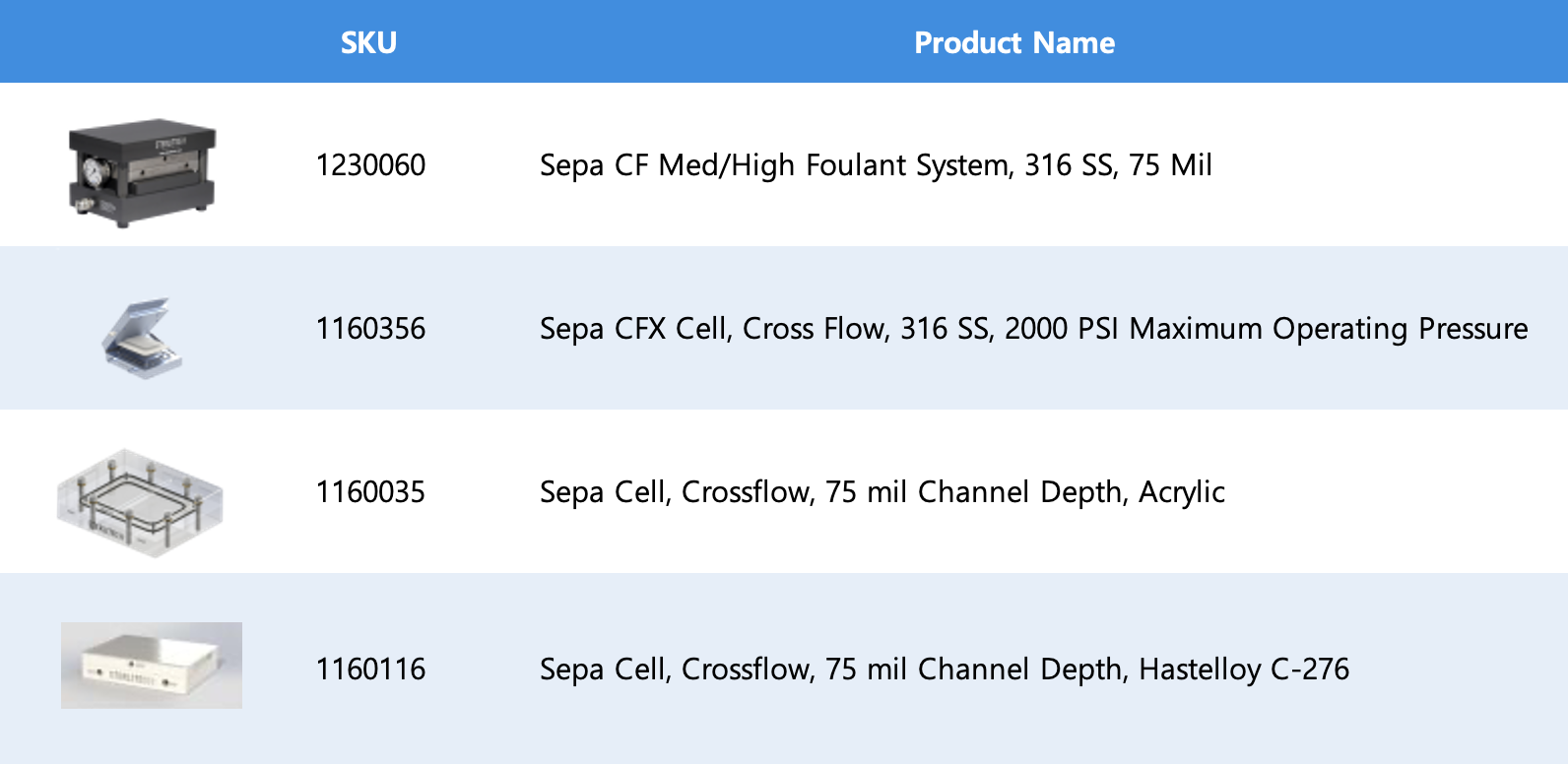

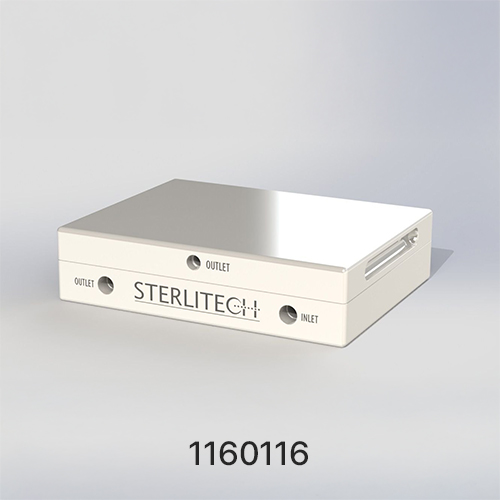

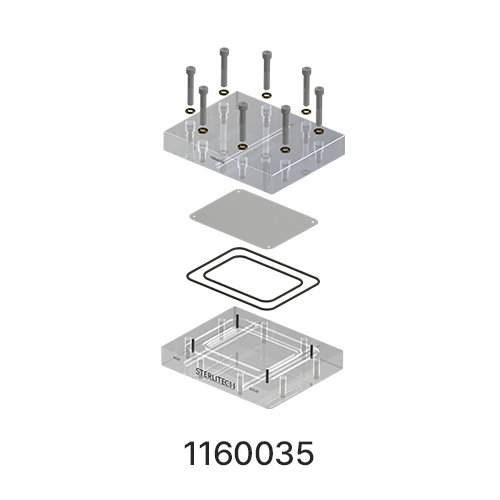

The SEPA Cell is a bench-scale cross/tangential flow cell that provides fast and accurate performance data with minimal amounts of membrane, product, expense or time. Available in Stainless Steel or Hastelloy for high pressure operation or Acrylic for low pressure operation. All cells are compatible with our kits, benchtop systems, and skid systems.

Sepa Cell Features and Benefits:

• Accepts polymeric flat sheet membrane coupons

• Mimics both laminar or turbulent flow conditions

• Provides fast and accurate performance data

• Offers judicious membrane use with small membrane active area

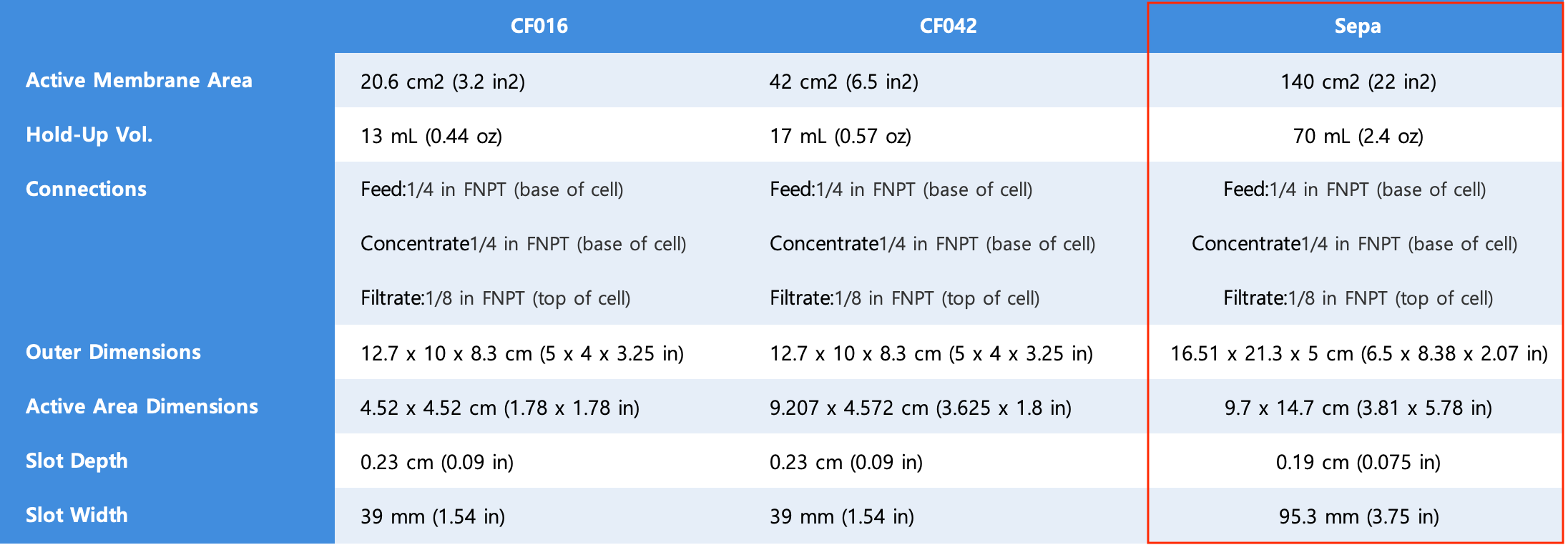

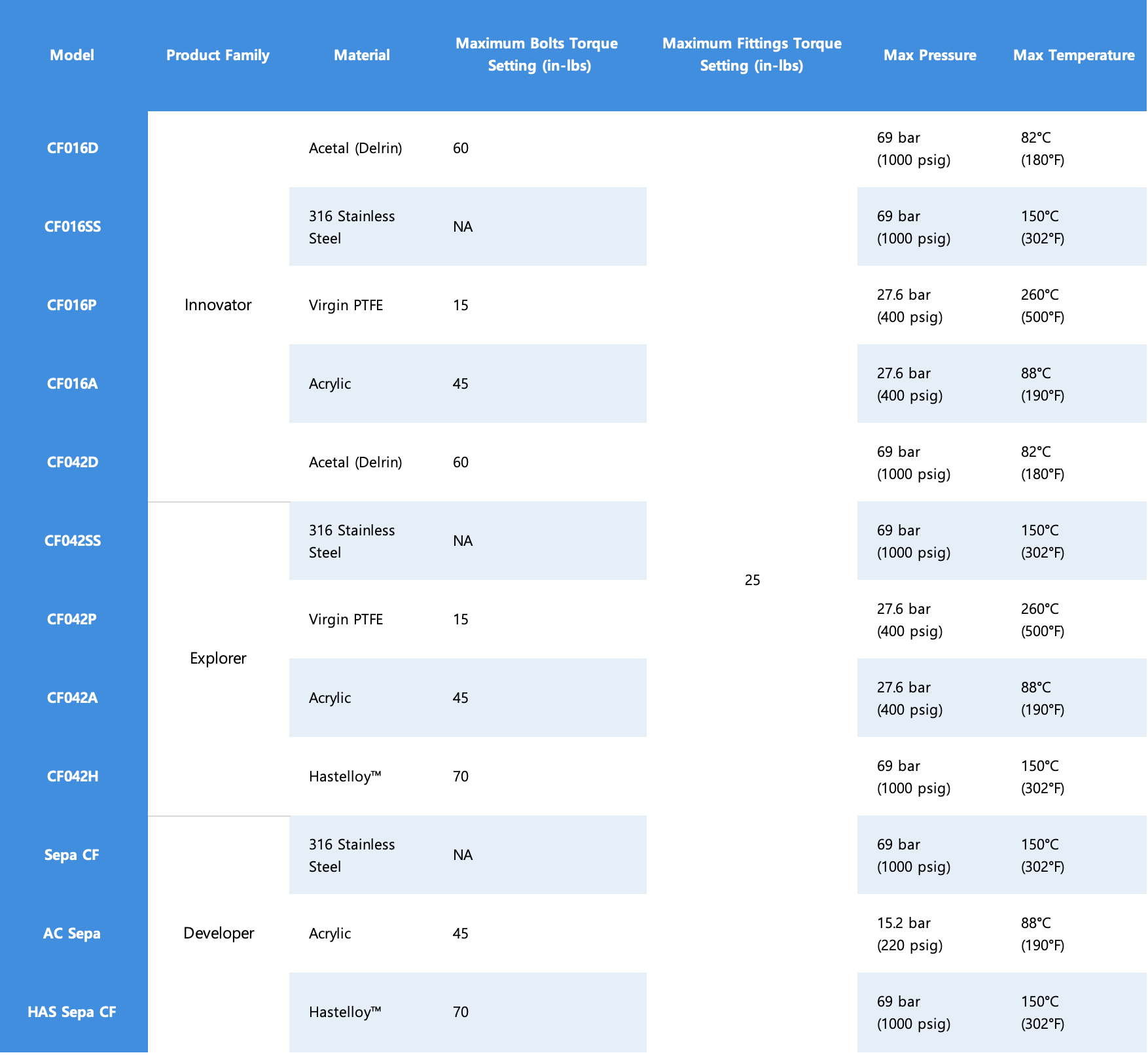

Specifications

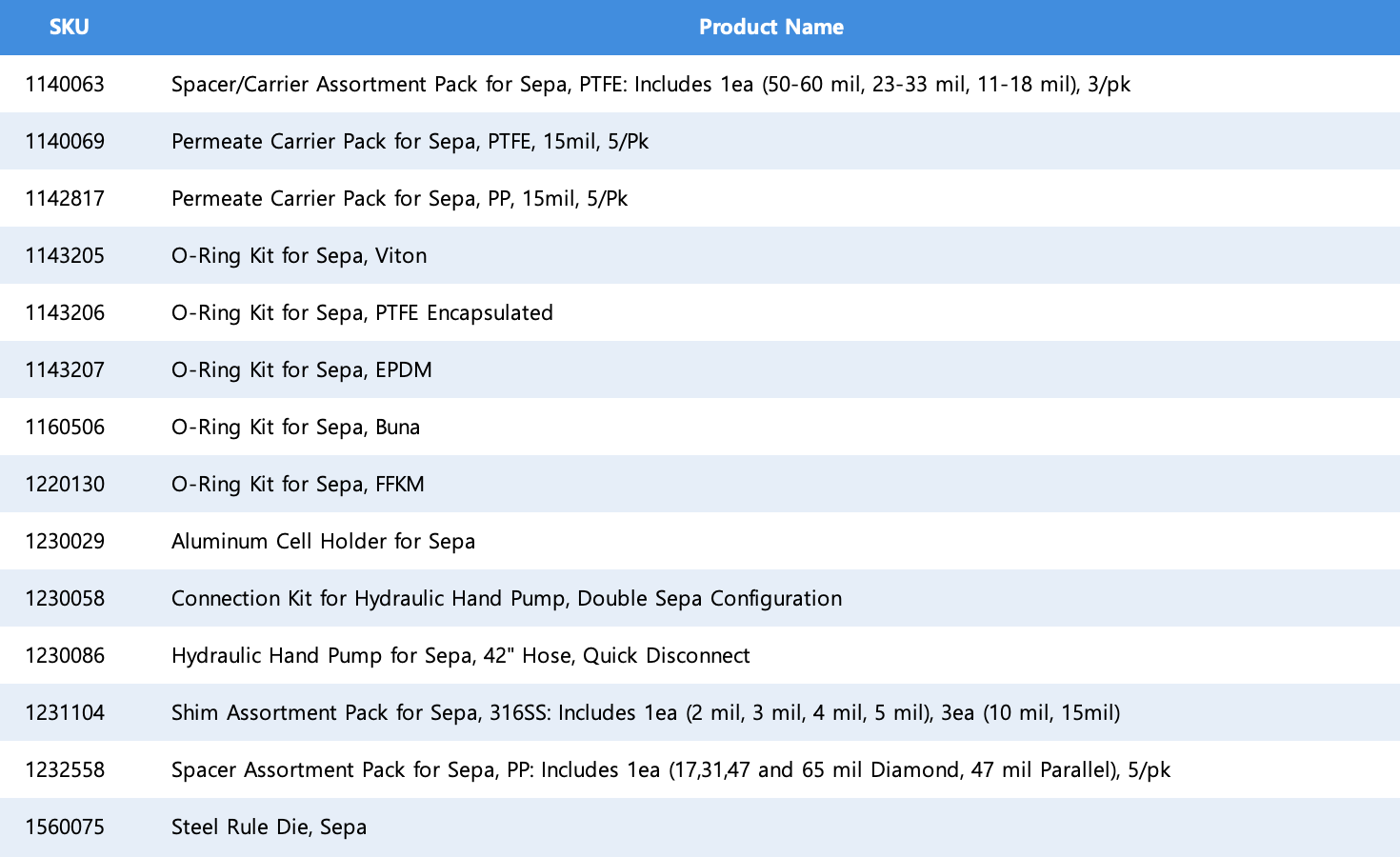

Accessory

Applications

• Membrane testing and evaluation

• Biological or biopharmaceutical processing

• Concentration of fruit juices and extracts

• Food and beverage processing

• Desalination of brackish water or seawater

• Purification of rinse water in electroplating tanks

• Municipal or industrial water and wastewater purification

Required Parts

In order to operate the SEPA CF Cell additional parts and equipment are required, which include:

• Sepa CF cell body holder

• A hydraulic hand pump to pressurize the Sepa CF cell holder

• Feed flow pump designed for high pressure, lower flow applications

• Feed spacers or permeate carriers which mimic hydrodynamic conditions of large scale membrane modules

• Feed and permeate tanks which connect to the cell

• Concentrate control valve to pressurize the cell

Product Attachments

Animation
