PUMP
-
-

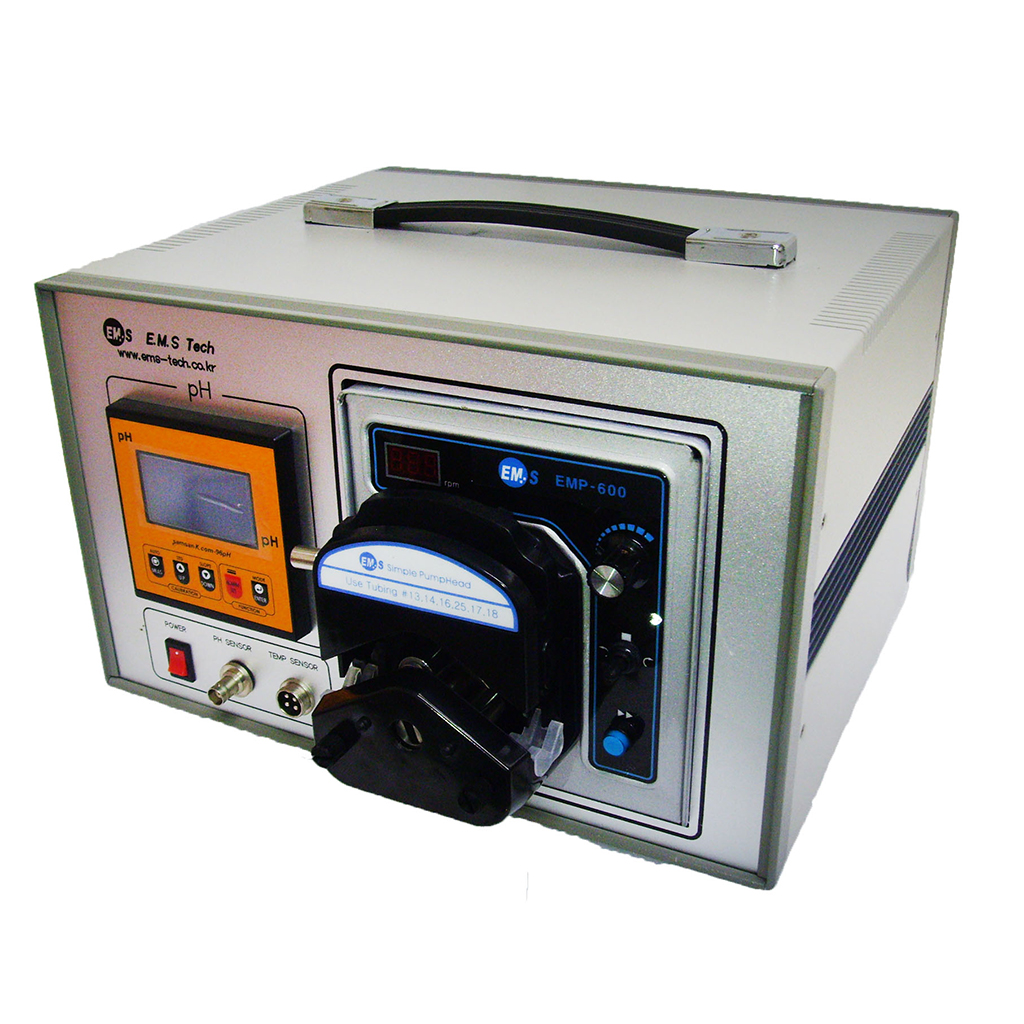

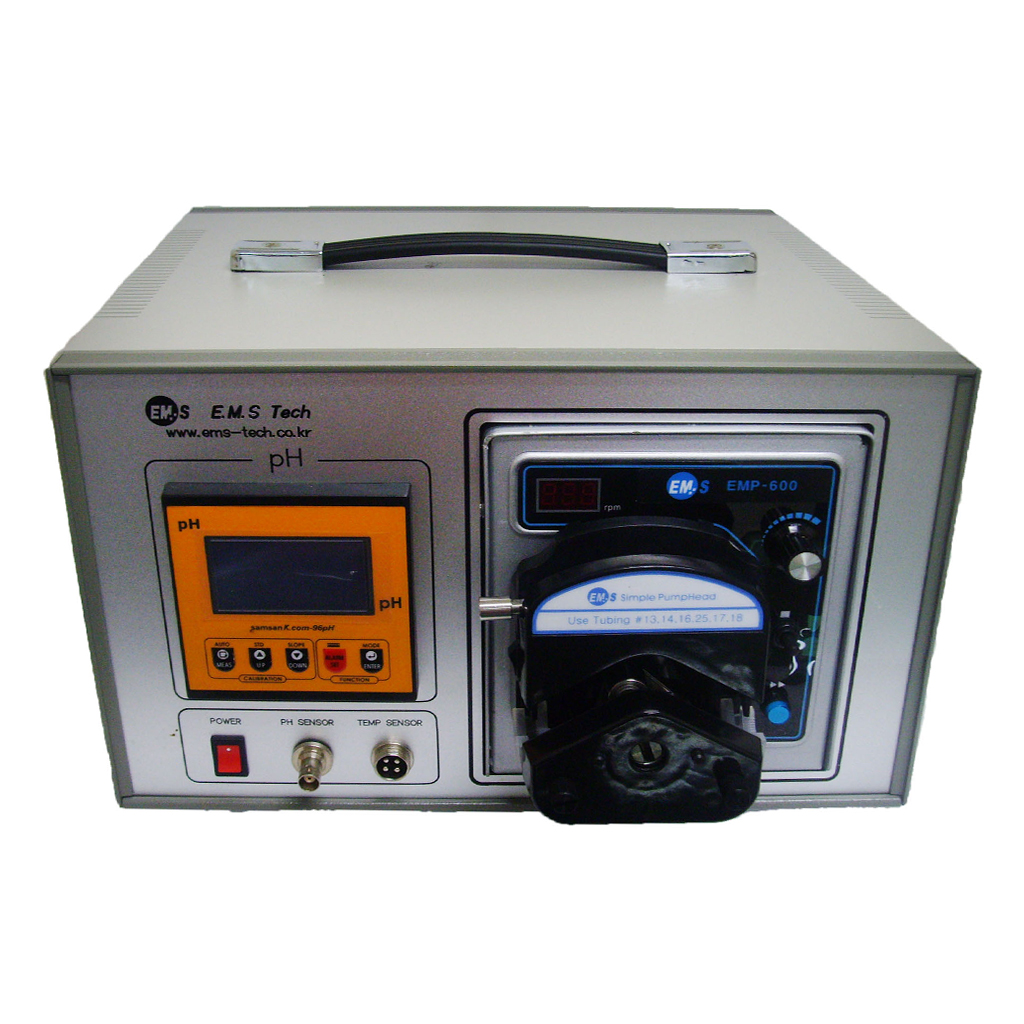

EMP-600PC, pH-linked Digital Peristaltic Pump
/ pH연동형 디지털 튜브연동펌프
Description
· 설정한 High 또는 Low pH에 따라서 Pump를 ON/OFF 조절이 가능
· 컴팩트 사이즈에 적재 가능한 타입으로 공간 활용 가능 (W×D×H: 350×300×220mm, 펌프헤드제외)
· 최대 2채널의 펌프 헤드 장착이 가능 (Tubing 종류에 따라 다름)
Application
· pH에 따라 유체의 자동 주입 조절이 필요한 환경에 적용 가능
Specifications
|
Motor Type(모터종류) | Stepping Motor |
RPM(회전속도) | 0.1 ~ 600 |
Flow Capacity(유량범위) | 0.06 to 2,300 mL/min (Full Range) |
펌프헤드 수(최대) | 2(튜빙종류에 따라 다름) |
사용온·습도 | Temperature : 0~50℃, Relative Humidity<80% |
Housing Materials | Carbon Steel Casing |
Display | 4 Digit LED Display(RPM or Timer) |
System Power | 230VAC, 60Hz |
Dimensions(W x D x H) | 350×300×220mm (펌프헤드제외) |
Applied Pump Head | EMH-1000, Easy-LoadⅠ, Easy-LoadⅡ, Easy-LoadⅢ, Standard, AMC Series, DG Series |
