상품 정보

PUMP

  • PUMP HEAD

      • Option

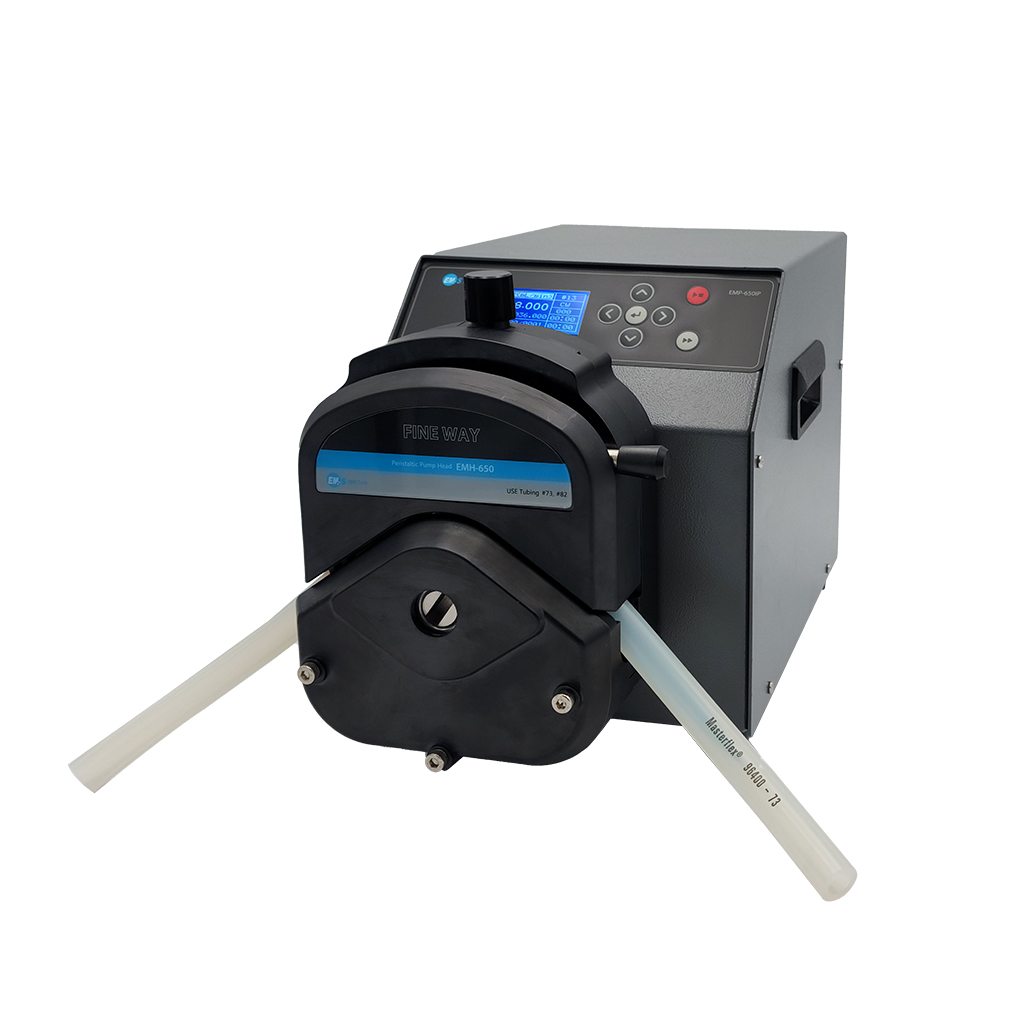

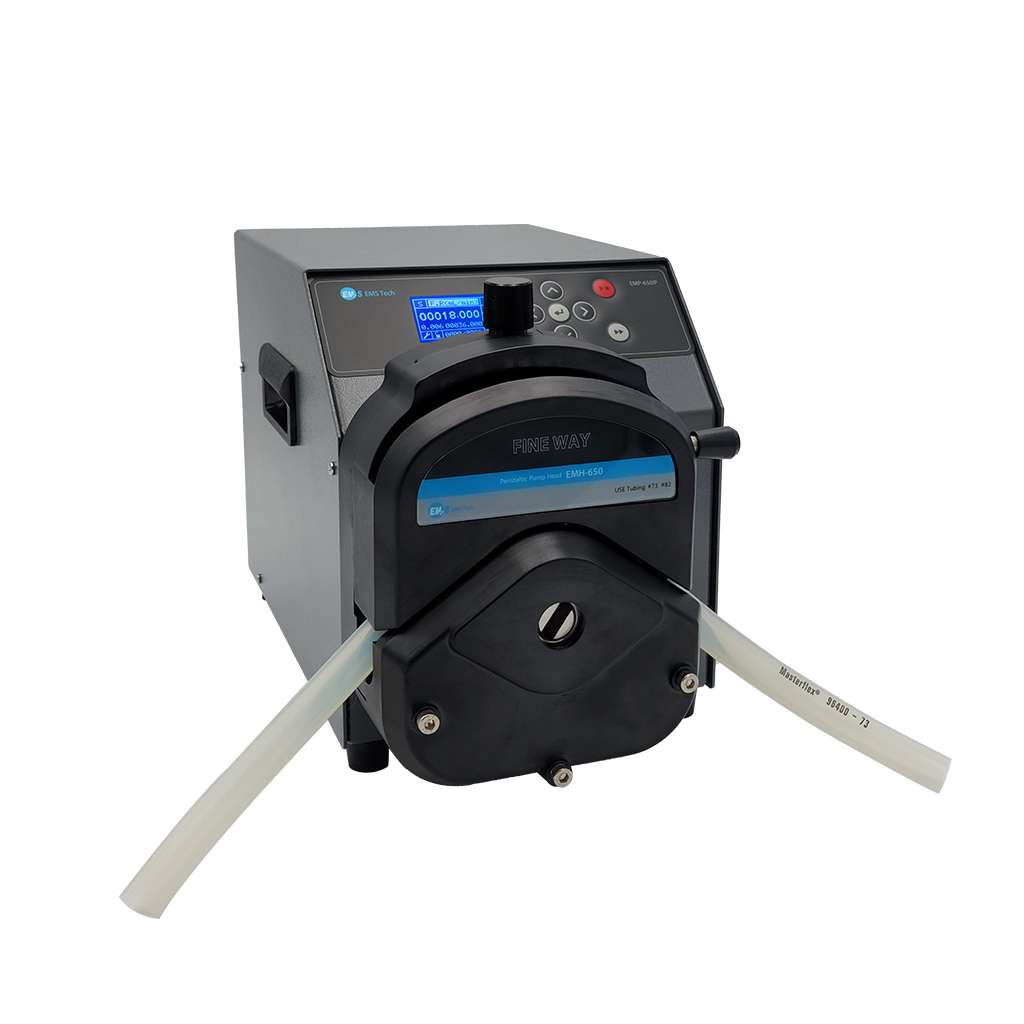

EMP-650IP, EMH-650, Industrial Digital Peristaltic Pump

/ 산업용 디지털 튜브연동펌프







Description

· 컴펙트 사이즈로 공간 활용 극대화 (W×D×H : 190×260×215mm, 펌프헤드제외)
· 최대 2채널의 펌프 헤드 장착이 가능 (튜빙 종류에 따라 다름)
· CW,CCW / Timer / RPM / Flow Rate Mode / Volume Mode(옵션)
· 외부연동 (풋스위치 4~20mA or 1~5v)기능
· 0.1~100 RPM : 0.1 RPM 단위 설정 / 100~650 RPM : 1 RPM 단위 설정가능(최대 50 RPM 단위로 설정가능)
· 외부기기에서 펌프 상태 확인 가능(Open Collector)
· 누수 감지 센서 연동 가능(Leak Detector)
· 정전 복구 기능 선택 가능(정전 복귀 후 Auto Start 기능)
· Flow Rate 표기 및 Calibration(자동보정)
· Anti-Drop 기능 - 마지막 한방울까지 정밀한 제어




Specifications

Motor Type(모터종류)

Stepping Motor

RPM(회전속도)

0.01 ~ 650

Flow Capacity(유량범위)

0.01 to 13 LPM (Full Range)

사용온·습도

Temperature : 0~50℃, Relative Humidity<80%

Housing Materials

Carbon Steel Casing, Special Coating Processing

Display

4 Digit LED Display(RPM or Timer)

System Power

230VAC, 60Hz

Dimensions(W×D×H)

190×260×215mm (펌프헤드제외)

Weight

10 kg

External Interface

Input : Internal/External, Stop/Start, CW/CCW, Speed(4~20mA or 1~5V), Leak Sensor

Output : Alarm, Pumping, Direction(CW/CCW)

Applied Pump Head

I/P Easy-Load

작동모드

유속 / RPM / Calibration / Volume(옵션) | RPM : 0.1 ~ 650, Timer : 00:01 ~ 99:59





Option

EMH-650&77602-00

Pump Head for IP73, IP82(MasterFlex I/P Easy-load Pump Head 호환)

EMT-FS-100L

Foot Switch for EMP-600A Series & EMP-650IP

LD-2000

Liquid Leak Detector(액체누수감지기) for EMP-600A Series & EMP-650IP
