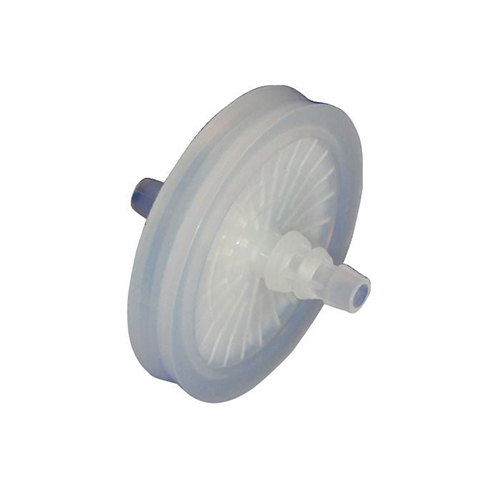

Vent Filters with PTFE
-
-
-
-
Sterlitech Vent Filters with PTFE Membrane Filter
/ PTFE 멤브레인 벤트필터
PTFE 멤브레인과 벤트 어플리케이션에 사용할 수 있는 다양한 커넥터가 있는 멸균 및 비멸균 벤트 필터.
다른 PTFE 필터와 마찬가지로 이러한 벤트 필터는 가장 화학적으로 공격적인 샘플 용액에도 견딜 수 있습니다.
벤트 필터는 표준 시린지 필터와 같은 기능을 하지만, 내장된 연결 옵션을 통해 벤트 분리 프로세스의 일부로 연결하기가 더 쉽습니다.
PTFE 벤트 필터 옵션:
• 멸균 또는 비멸균
• 연결: 6~12mm 또는 7~13mm 호스 바브
• 0.2 또는 0.45 마이크론 기공 크기
• 직경 50mm
SKU | Product Name | Pore Size | Connection | Sterile | Pack Size |
50JP020AN | PTFE Disposable Vent Filter, 0.2 Micron, 50mm, 7-13mm Hose Barb, 10/PK | 0.22 | | No | 10 |
PTFEV50250BAR10 | PTFE Vent Filter, Sterile, 0.2 Micron, 50mm, 6-12mm hose barb, 10/Pk | 0.22 | | Yes | 10 |
PTFEVS4550BAR10 | PTFE Vent Filter, Sterile, 0.45 Micron, 50mm, 6-12mm hose barb, 10/Pk | 0.45 | | Yes | 10 |
Vent Filters With PTFE Membranes Specifications
| 0.2 µm | 0.45 µm |
Membrane Type | Hydrophobic PTFE reinforced with Polypropylene | Hydrophobic PTFE reinforced with Polypropylene |
Pore Size | 0.2 µm | 0.45 µm |
Housing | Polypropylene | Polypropylene |
Connectors | 6 to 12 mm stepped barb or 1/8" NPT | 7 to 12 mm stepped barb or 1/8" NPT |
Filter Area | 19.6 cm2 | 19.6 cm2 |
Air Flow Rate | 27 L/min at 1 bar | 32 L/min at 1 bar |
Housing Diameter | 63 mm | 63 mm |
Housing Length | 53 mm | 53 mm |
Bubble Point (Ethanol) | 0.6 bar | 0.9 bar |
Maximum Pressure | 3.5 bar (50 psi) | 3.5 bar (50 psi) |
Sterilization | Autoclave at 121 °C or EtO. Autoclave up to 10 times | Autoclave at 121 °C or EtO. Autoclave up to 10 times |
Biosafety | All materials passed USP Class VI testing | All materials passed USP Class VI testing |
Applications
• Sterile venting of filling vessels, including culture vessels and CO2incubators
• Venting of holding tanks for sterile, distilled water and liquid culture media
• Autoclave venting
• In-line sterilization and particulate removal from air and gases
• Protects vacuum systems from pathogen contamination and vacuum pumps from aerosol corrosion
• Sterile gas introduction to bioreactors and culture vessels
• Venting of bioreactors, fermentation tanks, and carboys
• Filtering aggressive solvents in volumes beyond syringe filter capacity
• Protects work area from airborne pathogens and hazardous vacuum pump exhaust or venting
