Cat. No	제품메뉴얼	구매규격서	인증서	MSDS	ETC.
I03-91-045
I03-91-055
I03-91-065
I03-91-075

•

  Cat. No	Model	Capacity	Temp. Range
  I03-91-045	LI-IL060	60 L	0 ~ 70℃
  I03-91-055	LI-IL150	150 L
  I03-91-065	LI-IL250	250 L
  I03-91-075	LI-IL450	450 L

  Optional Accessory

  Cat. No	Model	Type

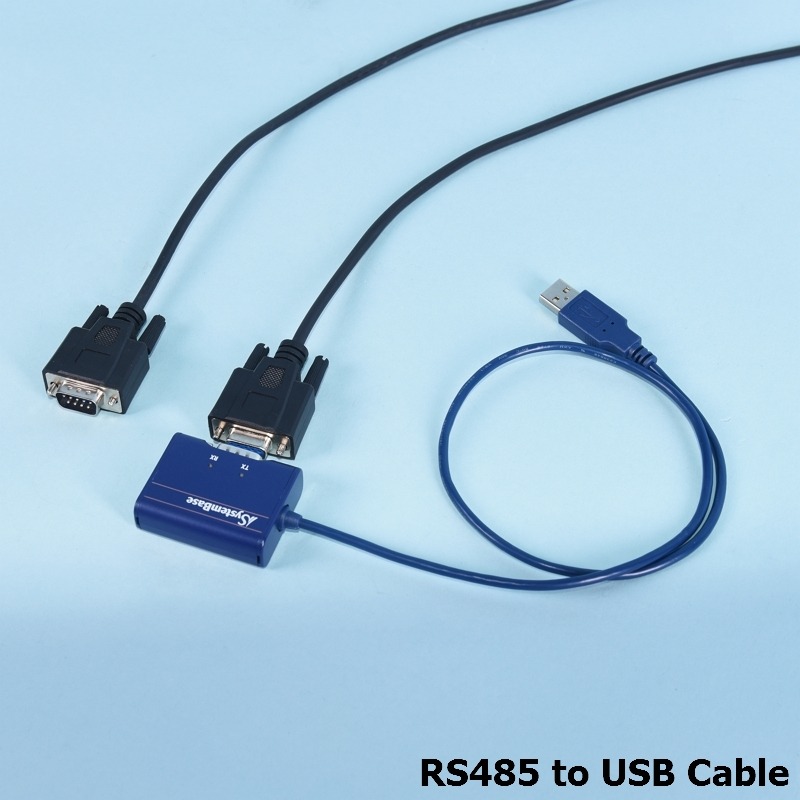

  B04-01-085	LI-USB	RS485 to USB Communication Cable
  I03-91-800	LI-ISSH060	Spare Shelf for 60 L
  I03-91-810	LI-ISSH150	Spare Shelf for 150 L
  I03-91-820	LI-ISSH250	Spare Shelf for 250 L
  I03-91-825	LI-ISSH450	Spare Shelf for 450 L
  I03-91-900	LI-INCP	Cable Port for Incubator
  I03-91-905	LI-INCON	220V Power outlet

  • ● I03-91-900, 905는 제품 주문 시 추가 가능하며 기존 제품에는 장착이 불가함
  Validation Service

  Cat. No	Model	Description
  I03-91-998	VA-LI100	Qualification IQ, OQ for B.O.D Incubator
  I03-91-898	VA-LI200	Qualification PQ for B.O.D Incubator

  • ● 당사 기본 양식에 따른 IQ/OQ Validation Service 비용이며, 지역이나 고객 요청에 의하여 비용이 변경될 수 있음

  Cat. No.		I03-91-045	I03-91-055	I03-91-065	I03-91-075
  Model		LI-IL060	LI-IL150	LI-IL250	LI-IL450
  Capacity		60 L	150 L	250 L	450 L

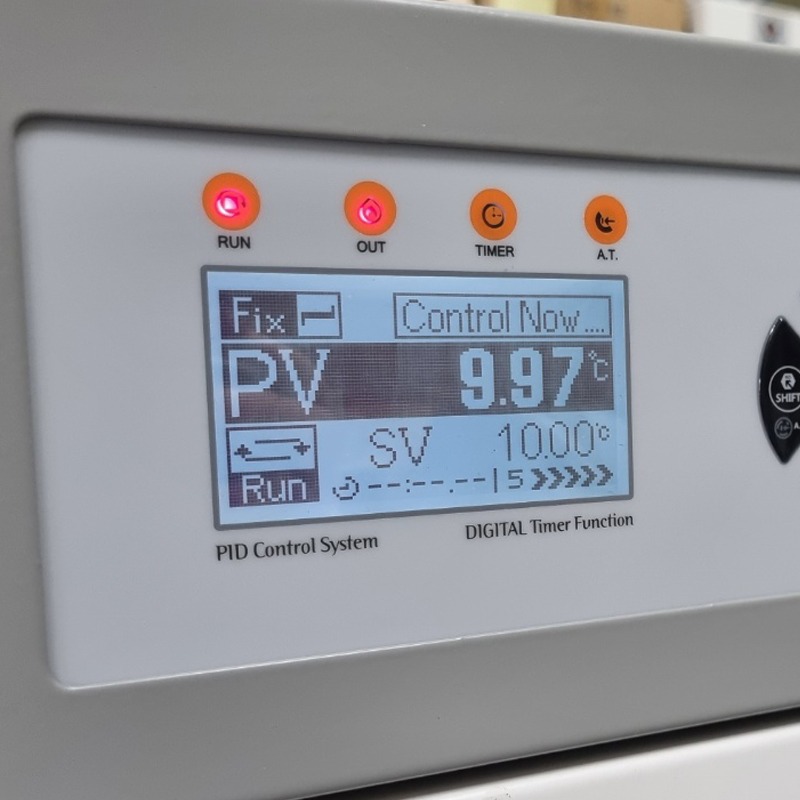

  Controller	Control	PID Control, Auto-tuning
  	Display	GLCD (Graphic LCD)
  	Resolution	0.01℃
  	Timer	Run start / Wait start (99 hr 59 min)
  Fan Speed		1 ~ 5 Step
  Temperature	Range	0 ~ 70℃
  	Accuracy at 37℃	±0.3℃
  	Uniformity at 37℃	±0.60℃	±0.63℃	±0.76℃	±0.98℃
  Size	Interior	w420×d350×h450 mm	w505×d505×h600 mm	w505×d505×h1000 mm	w720×d620×h1000 mm
  	Exterior	w580×d640×h1080 mm	w665×d810×h1300 mm	w665×d810×h1700 mm	w880×d920×h1700 mm
  Material	Interior	Stainless Steel 304
  	Exterior	Powder Coated Steel
  Electric Supply	Power	1 Phase / 220VAC / 60 Hz
  	Max Consumption	1.2 kW (5.5 A)	1.6 kW (7.3 A)	1.8 kW (8.2 A)	2.3 kW (10.5 A)
  	Power Line	Standard Plug
  Other	Wire shelf	1 ea	2 ea		3 ea
  	Caster	Leveling Caster
  Safety		Over Temp. & Current Protection, Automatical Fault Sensing System
