  Cat. No.	Model	Capacity	RPM
  S04-02-115	OSA-10	25L	100 ~ 2000
  S04-02-120	OSA-20	40L	80 ~ 1200
  S04-02-125	OSA-30	60L	50 ~ 800

  Cat. No.		S04-02-115	S04-02-120	S04-02-125
  Model		OSA-10	OSA-20	OSA-30
  Capacity(water)		25 L	40 L	60 L
  Max. Viscosity		70,000 mPas	100,000 mPas	150,000 mPas
  Max. Torque		120 Ncm	180 Ncm	270 Ncm
  Speed Range		100 ~ 2000 rpm	80 ~ 1200 rpm	50 ~ 800 rpm
  Resolution		5 rpm
  Material		ABS and Aluminum
  Max. Impeller Shaft Dia.		10 mm
  Display		Analog
  Safety		Overload & Heat Protector for Motor
  Environmental Conditions		Temp. 5 ~ 40 °C, Humidity < 80 %
  Electic Supply	Power	1 Phase, 220Vac, 50/60Hz
  	Consumption	150 W	170 W	200 W

  Optional Accessory

  Cat. No.	Model	Description

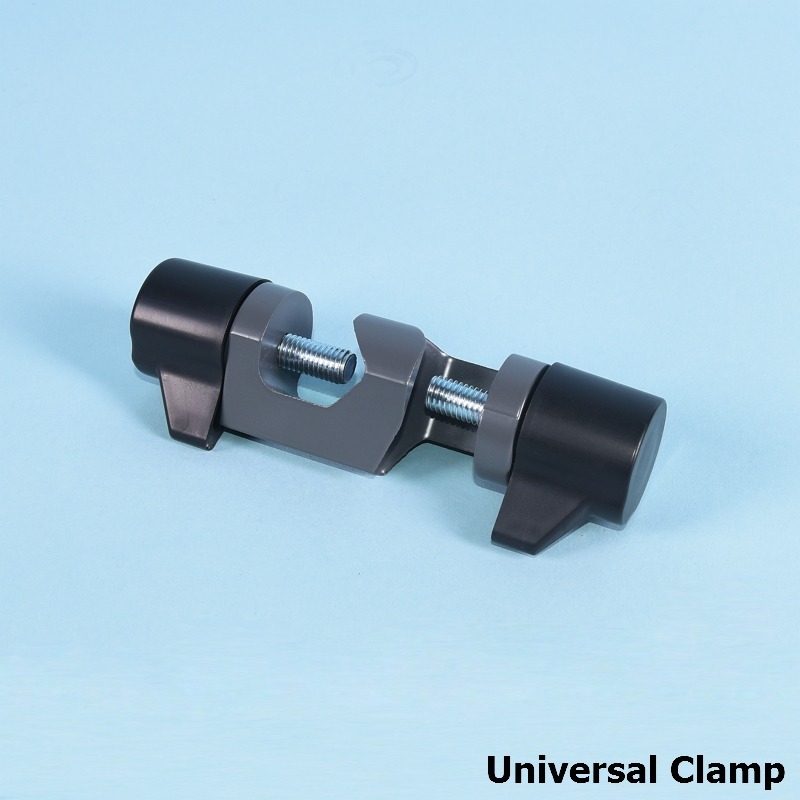

  C09-04-010	OSHC010	Universal Clamp

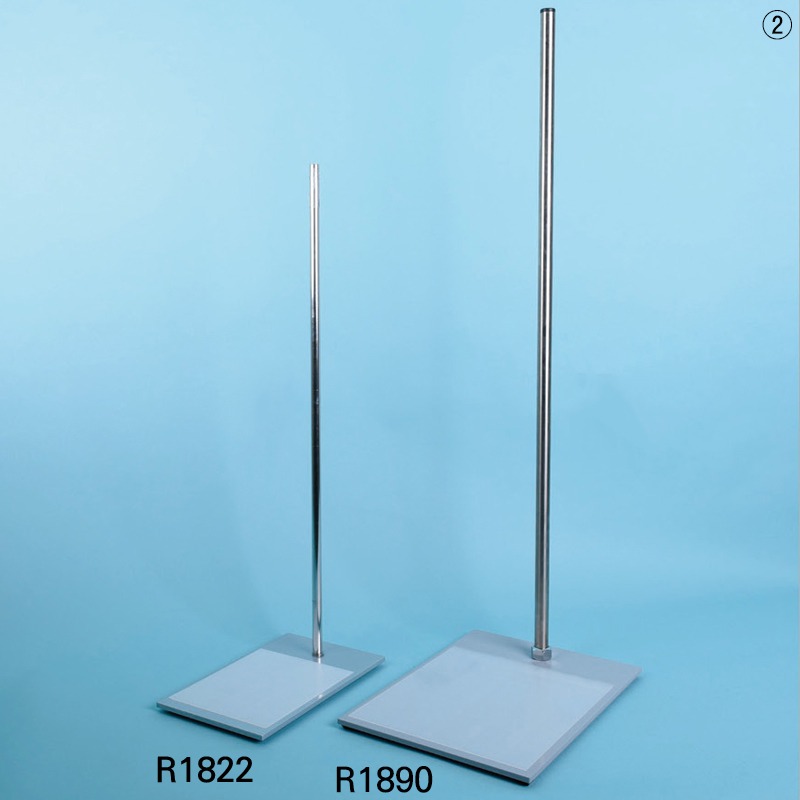

  H01-05-968	R1822	Plate Stand 200×315×800 mm
  S09-53-555	R1890	Plate Stand 300×400×1000 mm

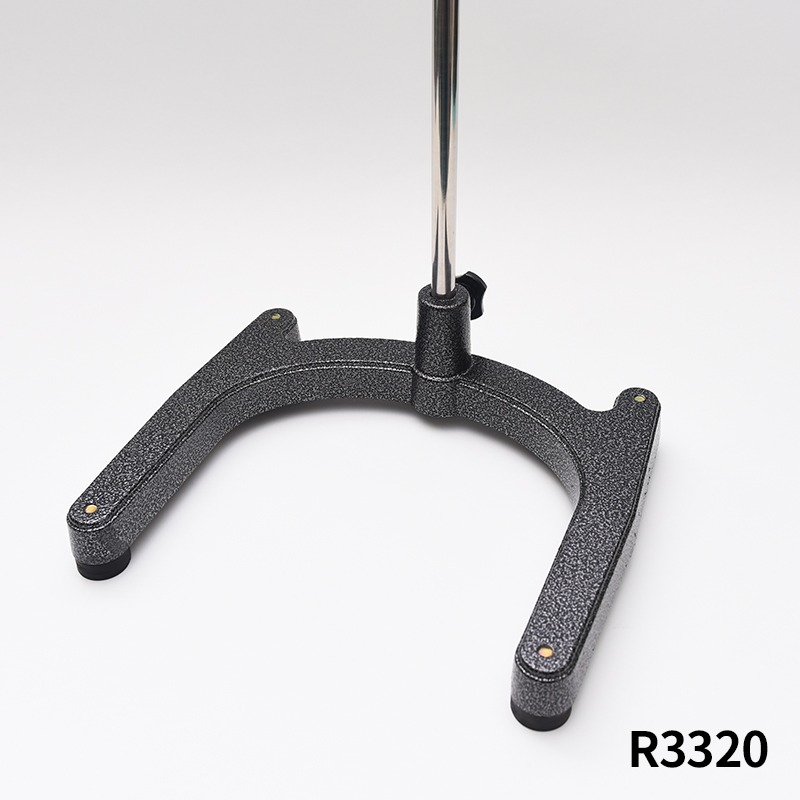

  S09-53-567	R3320	U-Type Stand 380×321×843 mm

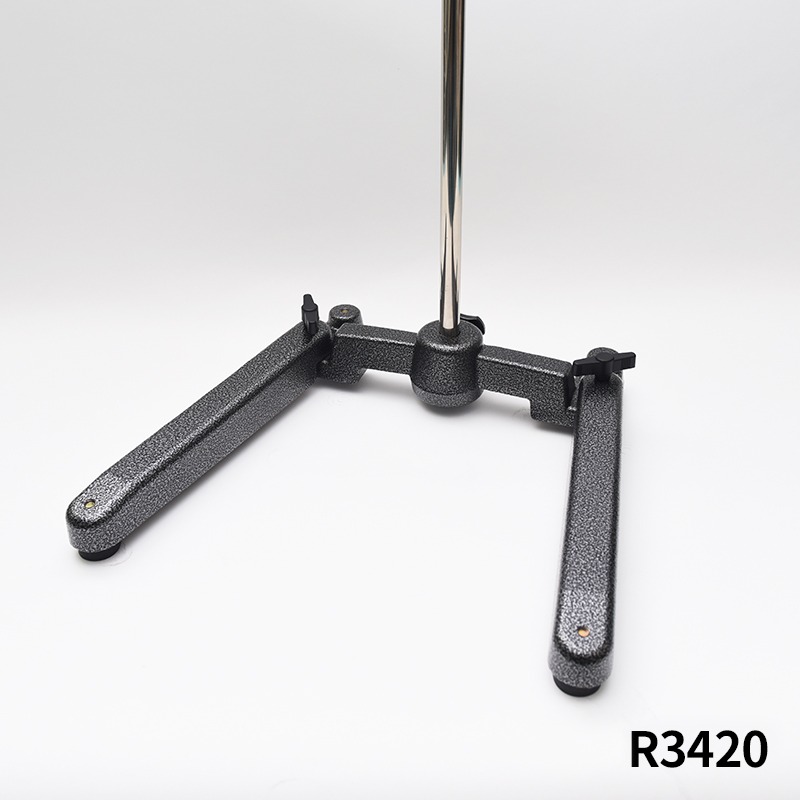

  S09-53-574	R3420	H-Type Stand 630×455×1275 mm
