Cat. No	제품메뉴얼	구매규격서	인증서	MSDS	ETC.
H04-91-001
H04-91-011
H04-91-030
H04-91-040
H04-91-143
H04-91-145
H04-91-151

• Cat. No	Model	Range	Block
  H04-91-001	LI-HB001	200 ℃	1 ea
  H04-91-011	LI-HB011		2 ea
  H04-91-030	LI-HB101	300 ℃	1 ea
  H04-91-040	LI-HB111		2 ea

  Optional Accessory

  Cat. No	Model	Description
  H03-03-205	SL-HSKIT	Support Kit
  B04-91-472	ET102	External Sensor, K-type, Ø4×L300 mm

  Validation Service

  Cat. No	Model	Description
  H03-91-997	VA-BH100	Qualification IQ, OQ for Heating Block
  H03-91-897	VA-BH200	Qualification PQ for Heating Block

  • ● 당사 기본 양식에 따른 IQ/OQ Validation Service 비용이며, 지역이나 고객 요청에 의하여 비용이 변경될 수 있음

  Cat. No.		H04-91-001	H04-91-011	H04-91-030	H04-91-040

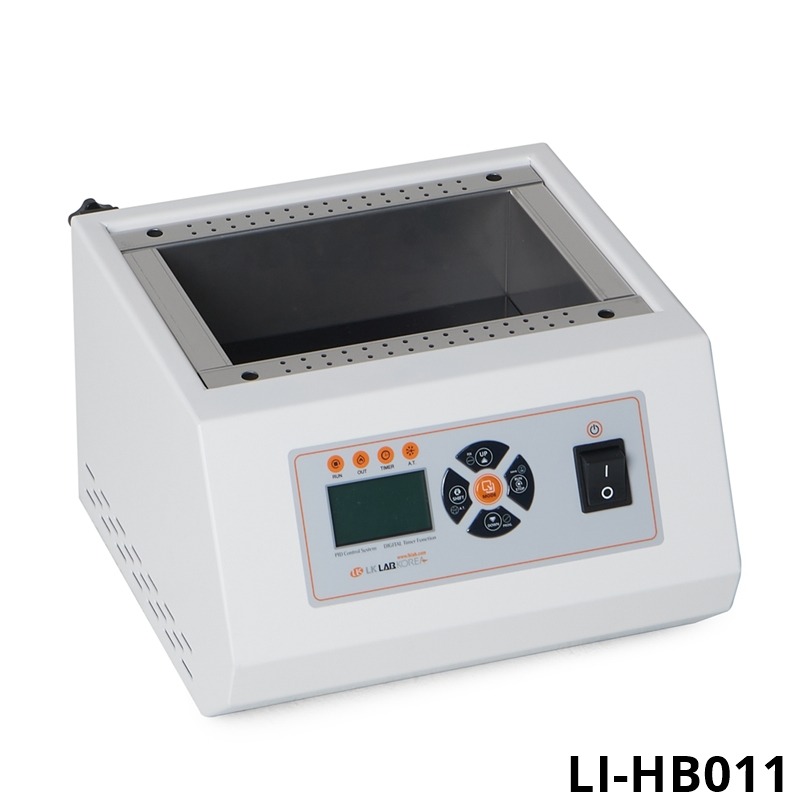

  Model		LI-HB001	LI-HB011	LI-HB101	LI-HB111
  Block		1ea	2ea	1ea	2ea
  Controller	Control / Display	PID Control, Auto-tuning / GLCD (Graphic LCD)
  	Resolution	0.1℃
  Temperature	Range	Ambient +10 to 200℃		Ambient +10 to 300℃
  	Uniformity at 100℃	±0.52℃	±0.66℃	±0.52℃	±0.66℃
  Size	Interior	w121xd91xh60 mm	w181xd121xh60 mm	w121xd91xh60 mm	w181xd121xh60 mm
  	Exterior	w190×d230×h170 mm	w250×d280×h170 mm	w235×d250×h170 mm	w295×d300×h170 mm
  Material	Interior	Stainless Steel 304
  	Exterior	Powder Coated Steel
  Electric Supply	Power	1 Phase, 220VAC, 50/60 Hz
  	Max Consumption	250 W (1.2 A)	350 W (1.6 A)	600 W (2.7 A)	800 W (3.6 A)
  	Power Line	Standard Plug

  Microcentrifuge Tube Block

  Cat. No	Model	Tube Dia.	Hole Size	Hole
  H04-91-141	LI-HB141	0.5 ml	Φ7.9×h27.6 mm	30 ea
  H04-91-143	LI-HB143	1.5 ml	Φ11.5×h36.9 mm	20 ea
  H04-91-145	LI-HB145	2.0 ml	Φ11.5×h38.1 mm	20 ea

  Conical Bottom Centrifuge Tube Block

  Cat. No	Model	Tube Vol.	Hole Size	Hole
  H04-91-151	LI-HB151	15 ml	Φ17.1×h44.5 mm	12 ea

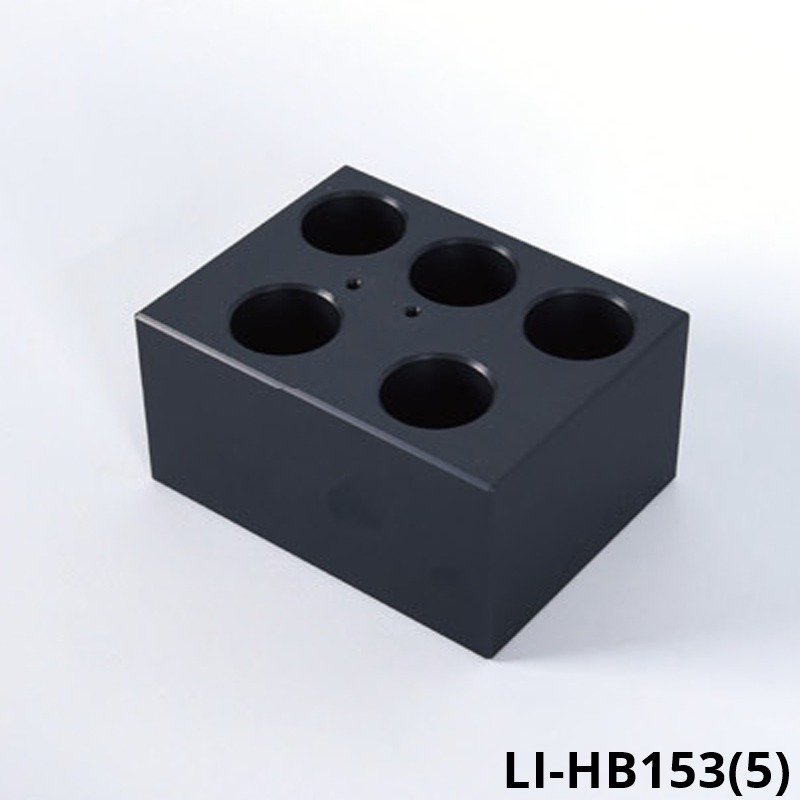

  H04-91-153	LI-HB153	50 ml	Φ29×h47.6 mm	5 ea

  Vial Block

  Cat. No	Model	Tube Dia.	Hole Size	Hole
  H04-91-181	LI-HB181	12 mm	Φ12.7×h30 mm	20 ea
  H04-91-183	LI-HB183	15 mm	Φ15.8×h35 mm	20 ea
  H04-91-185	LI-HB185	16 mm	Φ16.4×h45 mm	15 ea
  H04-91-187	LI-HB187	17 mm	Φ17.8×h45 mm	12 ea
  H04-91-189	LI-HB189	19 mm	Φ19.7×h45 mm	12 ea
  H04-91-191	LI-HB191	21 mm	Φ21.7×h45 mm	9 ea
  H04-91-193	LI-HB193	23 mm	Φ23.8×h45 mm	8 ea
  H04-91-195	LI-HB195	25 mm	Φ25.8×h45 mm	8 ea

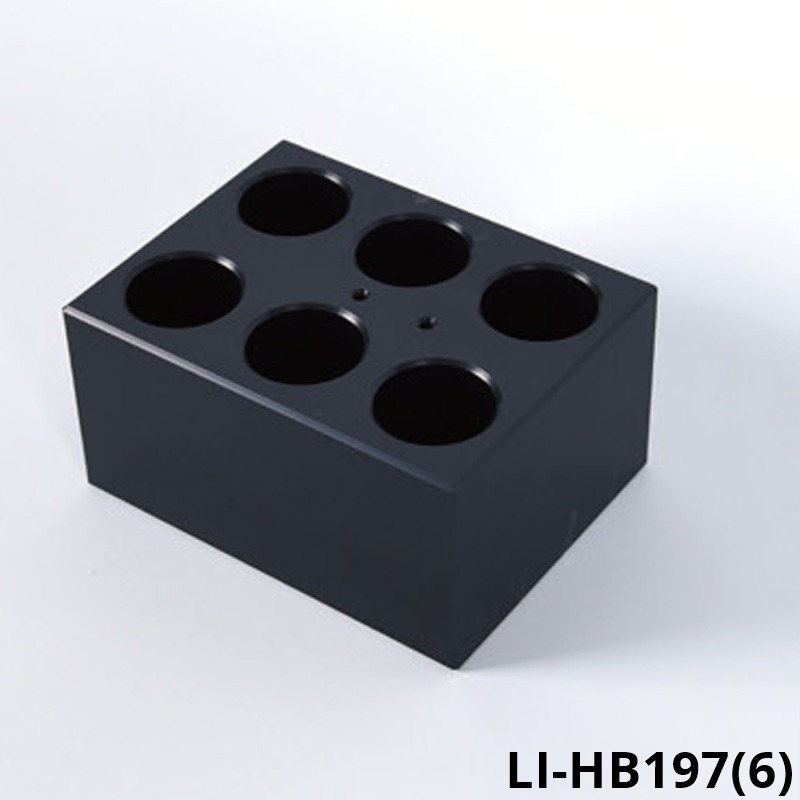

  H04-91-197	LI-HB197	28 mm	Φ28.8×h45 mm	6 ea

  Test Tube Block

  Cat. No	Model	Tube Dia.	Hole Size	Hole
  H04-91-161	LI-HB161	6 mm	Φ6.5×h50 mm	30 ea
  H04-91-163	LI-HB163	10 mm	Φ10.7×h50 mm	20 ea
  H04-91-165	LI-HB165	12 mm	Φ12.7×h50 mm	20 ea

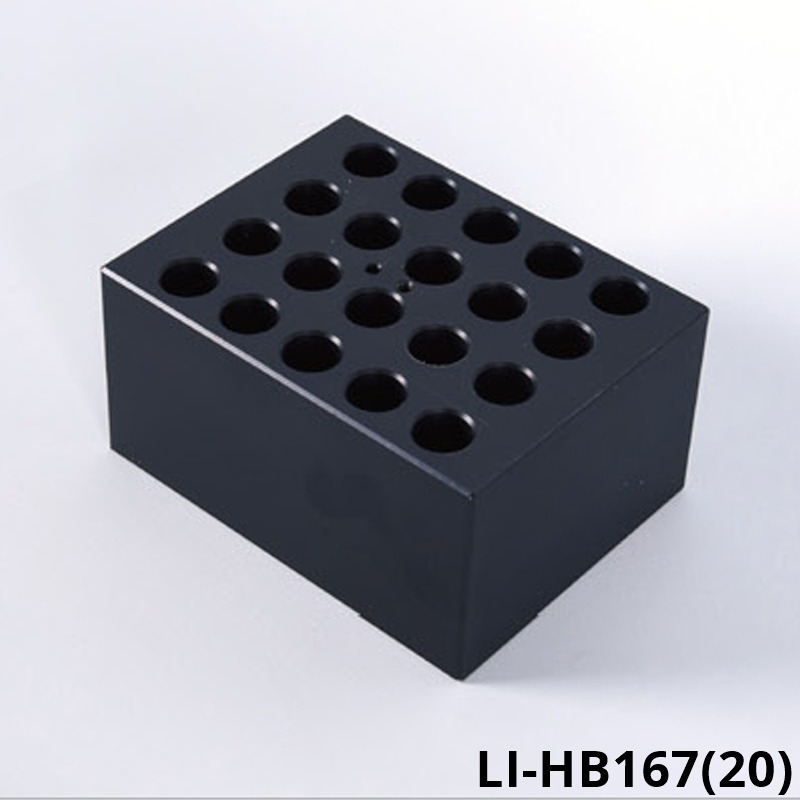

  H04-91-167	LI-HB167	13 mm	Φ13.7×h50 mm	20 ea
  H04-91-169	LI-HB169	15 mm	Φ15.7×h50 mm	12 ea
  H04-91-171	LI-HB171	16 mm	Φ16.7×h50 mm	12 ea
  H04-91-173	LI-HB173	18 mm	Φ18.7×h50 mm	12 ea

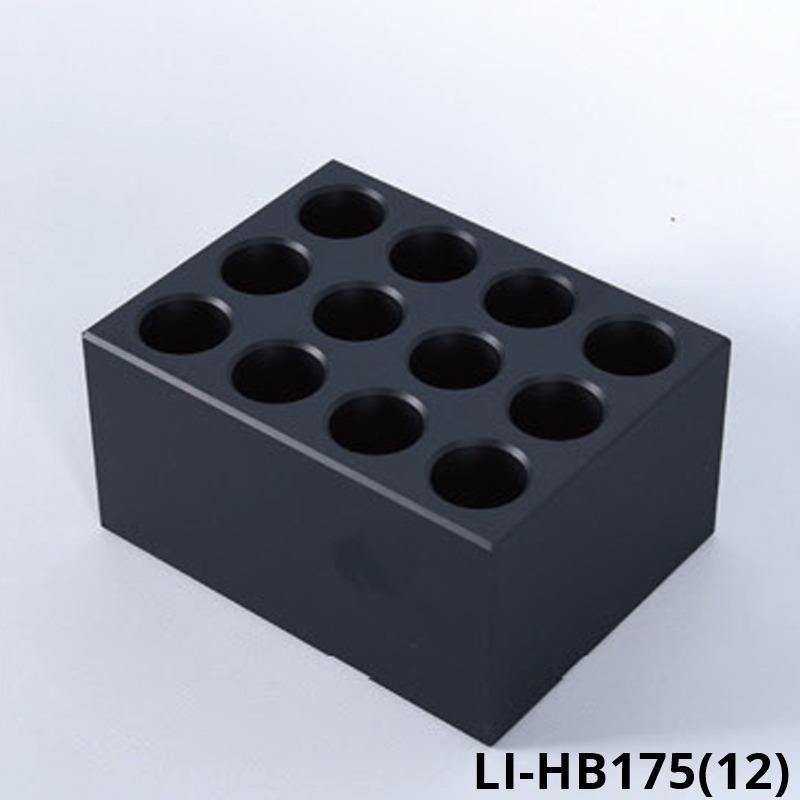

  H04-91-175	LI-HB175	20 mm	Φ20.7×h50 mm	12 ea
  H04-91-177	LI-HB177	25 mm	Φ25.7×h50 mm	6 ea
