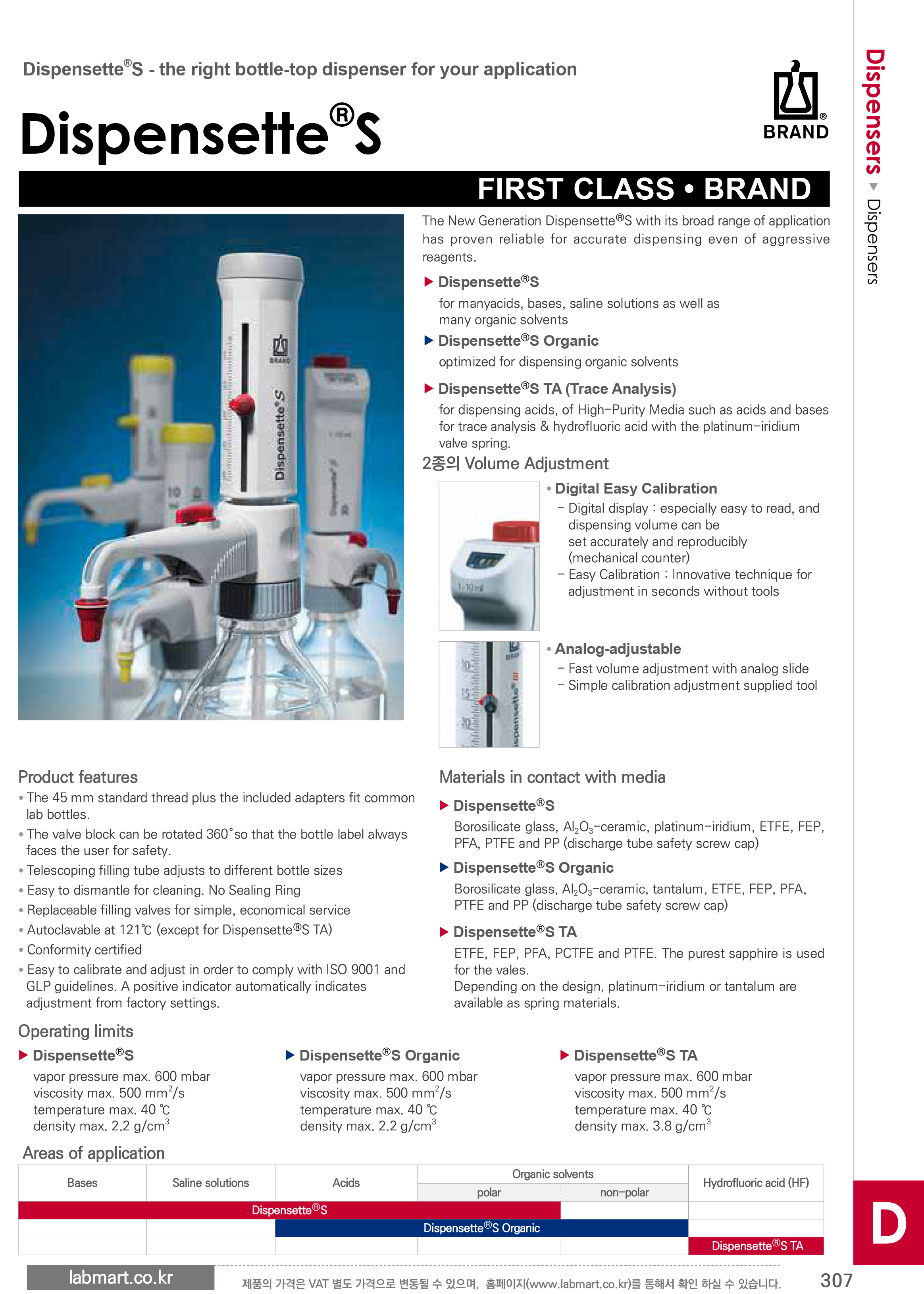

Brand GmBH, Dispensette S Digital

/ 디지털 바틀탑 디스펜서

■ Aggressive Reagents 용

■ Completely Autoclavable at 121℃

■ 내부에 Sealing Ring이 없어 유지 보수 및 세척이 간단함

■ For Concentrated acids such as H3PO4, H2SO4, bases like NaOH,

     KOH, saline solutions, as well as many organic solvents용

■ For such reagents as concentrated HCl and HNO3, for trifluoroacetic

     acid (TFA), tetrahydrofuran (THF), dichloromethane and peroxides,

     we recommend the Dispensette®S Organic.

■ IS09001과 GLP에 따른 보정 작업이 가능

■ 공통 구성품 : Dispenser with GL45 Thread, Conformity Certified,

                        Performance Certificate, Discherging Tube, Mounting Tool,

                        Adapter (1 ~ 10 ml : GL24-25, GL28/S28, GL32-33, GL38,

                        S40. 25 ~ 100 ml : GL32-33, GL38, S40), Filling Tube

                        (1 ~ 10 ml : 125 ~ 240 mm, 25 ~ 100 ml : 170 ~ 330 mm)

■ without Recirculation Valve는 Recirculation Tube 미포함

■ Brand GmBH

•
  • Digital, Easy Calibration, 디지털 조절식
    ● 분주용량을 정밀하고 정확하게 조절할 수 있음
  without Recirculation Valve

  Cat. No	Model	용량 (ml)	눈금 (ml)	Accuracy	Coefficient of variation
  D03-59-096	4600310	0.1 ~ 1	0.005	≤±0.6%(6 ul)	≤±0.2%(2 ul)
  D03-59-102	4600320	0.2 ~ 2	0.01	≤±0.5%(10 ul)	≤±0.1%(2 ul)
  D03-59-106	4600330	0.5 ~ 5	0.02	≤±0.5%(25 ul)	≤±0.1%(5 ul)
  D03-59-110	4600340	1 ~ 10	0.05	≤±0.5%(50 ul)	≤±0.1%(10 ul)
  D03-59-114	4600350	2.5 ~ 25	0.1	≤±0.5%(125 ul)	≤±0.1%(25 ul)
  D03-59-118	4600360	5 ~ 50	0.2	≤±0.5%(250 ul)	≤±0.1%(50 ul)

  with Recirculation Valve

  Cat. No	Model	용량 (ml)	눈금 (ml)	Accuracy	Coefficient of variation
  D03-59-146	4600311	0.1 ~ 1	0.005	≤±0.6%(6 ul)	≤±0.2%(2 ul)
  D03-59-152	4600321	0.2 ~ 2	0.01	≤±0.5%(10 ul)	≤±0.1%(2 ul)
  D03-59-156	4600331	0.5 ~ 5	0.02	≤±0.5%(25 ul)	≤±0.1%(5 ul)
  D03-59-160	4600341	1 ~ 10	0.05	≤±0.5%(50 ul)	≤±0.1%(10 ul)
  D03-59-164	4600351	2.5 ~ 25	0.1	≤±0.5%(125 ul)	≤±0.1%(25 ul)
  D03-59-168	4600361	5 ~ 50	0.2	≤±0.5%(250 ul)	≤±0.1%(50 ul)
