Digital Peristaltic Pump/ 정량 이송 펌프

상품 선택옵션 1 개, 추가옵션 0 개

상품코드 1544197181
제조사 Masterflex®
판매사 (주)코리아사이언스
브랜드 -
배송비결제 구매금액이 100,000원 이하인 경우 배송비 3,500원이 자동 결제됩니다.
창닫기

선택옵션

선택
[P06-55-045] Peristaltic Pump Set 6-600rpm 0.36-3400ml  + 4,367,000원
[P06-55-052] Peristaltic Pump Set 3-300rpm 0.18-1700ml  + 4,367,000원
[P06-55-061] Peristaltic Pump Set 1-100rpm 0.06-580ml  + 4,367,000원
[P06-55-046] Precision Peristaltic Pump Set 0.36 ~ 2300 ml/min Easy Load ® Ⅱ  + 4,301,000원
[P06-55-053] Precision Peristaltic Pump Set 0.18 ~ 850 ml/min Easy Load ® Ⅱ  + 4,301,000원
[P06-55-062] Precision Peristaltic Pump Set 0.06 ~ 380 ml/min Easy Load ® Ⅱ  + 4,301,000원
[P06-55-047] Precision Peristaltic Pump Set 11 ~ 3400 ml/min Easy Load ® Ⅱ  + 4,301,000원
[P06-55-054] Precision Peristaltic Pump Set 5.5 ~ 1700 ml/min Easy Load ® Ⅱ  + 4,301,000원
[P06-55-063] Precision Peristaltic Pump Set 1.8 ~ 580 ml/min Easy Load ® Ⅱ  + 4,301,000원
[P06-55-048] Precision Peristaltic Pump Set 0.36 ~ 2300 ml/min Easy Load ® Ⅲ  + 4,246,000원
[P06-55-055] Precision Peristaltic Pump Set 0.18 ~ 850 ml/min Easy Load ® Ⅲ  + 4,246,000원
[P06-55-064] Precision Peristaltic Pump Set 0.06 ~ 380 ml/min Easy Load ® Ⅲ  + 4,246,000원
[P06-55-145] Peristaltic Pump Drive only, rpmEA display 6-600rpm  + 3,494,150원
[P06-55-152] Peristaltic Pump Drive only, rpm display 3-300rpm  + 3,494,150원
[P06-55-161] Peristaltic Pump Drive only, rpm display 1-100rpm  + 3,494,150원
[P06-55-914] Peristaltic Pump Head Easy-Load 2 CRS, Standard  + 805,310원
[P06-55-917] Peristaltic Pump Head Easy-Load 2 SS, Standard  + 1,010,900원
[P06-55-920] Peristaltic Pump Head Easy-Load 2 CRS, Precision  + 805,310원
[P06-55-923] Peristaltic Pump Head Easy-Load 2 SS, Precision  + 1,010,900원
[P06-55-930] Peristaltic Pump Head Easy-Load 3 CRS, Standard  + 747,560원
[P06-55-934] Peristaltic Pump Head Easy-Load 3 SS, Standard  + 943,910원
[P06-55-938] Peristaltic Pump Head Easy-Load 3 CRS, Precision  + 747,560원
[P06-55-942] Peristaltic Pump Head Easy-Load 3 SS, Precision  + 943,910원
위시리스트

관련상품

등록된 관련상품이 없습니다.

상품 정보

Peristaltic Pump Set / 기본형 정량 이송 펌프

      • 기본형 정량 이송 펌프 세트 2 with Easy Load® Ⅱ PumpHead ( # 77200-50 )

            • 기본형 정량 이송 펌프 세트 3 with Easy Load® Ⅱ PumpHead ( # 77200-52 )

                  • 기본형 정량 이송 펌프 세트 4 with Easy Load® Ⅲ PumpHead ( # 77800-50 )

                        • Standard Drive Only

                              • Pump Head, Easy-Load® Ⅱ

                                      • Pump Head, Easy-Load® III













Digital Peristaltic Pump/ 정량 이송 펌프

■ 탄성이 있는 튜브를 사용, Roller를 회전 시킴으로서 일정량의 액체를
연속적으로 이송시키는 펌프
■ RPM만 Digital로 표시되는 경제형 Masterflex® 모델
■ 액체의 이송량은 튜빙 사이즈와 모터의 rpm에의해결정됨
■ 모터의 회전 방향은 정, 역회전이 가능함
■ Digital Display - RPM Only
■ DBQ Remote Control Connection
- Speed via 0 to 10 V, 4 to 20 mA
- Direction, Start / Stop
■ 모든 LS Pump Head와같이사용가능
Peristaltic Pump용 Accessory 667 page 참조
■ Masterflex®





  •   Peristaltic Pump Set 1 with Easy Load® PARA Housing Pump Head, 기본형 정량 이송 펌프 세트 1 ①
    Cat. NoModelFlow RateSpeed
    P06-55-0457528-10S0.36 ~ 3400 ml/min6 ~ 600rpm
    P06-55-0527528-20S0.18 ~ 1700 ml/min3 ~ 300rpm
    P06-55-0617528-30S0.06 ~ 580 ml/min1 ~ 100rpm
    • ● 구성 : Standard Drive, Easy Load® PARA Housing (7514-10) 각 1개
    • ● 7514-10 사용 가능 Tube : LS13, LS14, LS16, LS25, LS17, LS18
    Peristaltic Pump Set 2 with Easy Load® Ⅱ Pump Head, 기본형 정량 이송 펌프 세트 2 ②
    Cat. NoModelFlow RateSpeed
    P06-55-0467528-10S20.36 ~ 3400 ml/min6 ~ 600rpm
    P06-55-0537528-20S20.18 ~ 1700 ml/min3 ~ 300rpm
    P06-55-0627528-30S20.06 ~ 580 ml/min1 ~ 100rpm
    • ● 구성 : Standard Drive, Easy Load® Ⅱ (77200-50) 각 1개
    • ● 77200-50 사용 가능 Tube : LS13, LS14, LS16, LS25, LS17, LS18
    Peristaltic Pump Set 3 with Easy Load® Ⅱ Pump Head, 기본형 정량 이송 펌프 세트 3 ②
    Cat. NoModelFlow RateSpeed
    P06-55-0477528-10S311 ~ 3400 ml/min6 ~ 600rpm
    P06-55-0547528-20S35.5 ~ 1700 ml/min3 ~ 300rpm
    P06-55-0637528-30S31.8 ~ 580 ml/min1 ~ 100rpm
    • ● 구성 : Standard Drive, Easy Load® Ⅱ (77200-52) 각 1개
    • ● 77200-52 사용 가능 Tube : LS15, LS24, LS36, LS36
    Peristaltic Pump Set 4 with Easy Load® Ⅲ Pump Head, 기본형 정량 이송 펌프 세트 4 ③
    Cat. NoModelFlow RateSpeed
    P06-55-0487528-10S40.36 ~ 2300 ml/min6 ~ 600rpm
    P06-55-0557528-20S40.18 ~ 850 ml/min3 ~ 300rpm
    P06-55-0647528-30S40.06 ~ 380 ml/min1 ~ 100rpm
    • ●● 구성 : Standard Drive, Easy Load® Ⅲ (77800-50) 각 1개
    • ● 77800-50 사용 가능 Tube : LS13, LS14, LS16, LS25, LS17, LS18
    Standard Drive Only
    Cat. NoModelFlow RateSpeed
    P06-55-1457528-100.36 ~ 3400 ml/min6 ~ 600rpm
    P06-55-1527528-200.36 ~ 1700 ml/min3 ~ 300rpm
    P06-55-1617528-300.06 ~ 580 ml/min1 ~ 100rpm

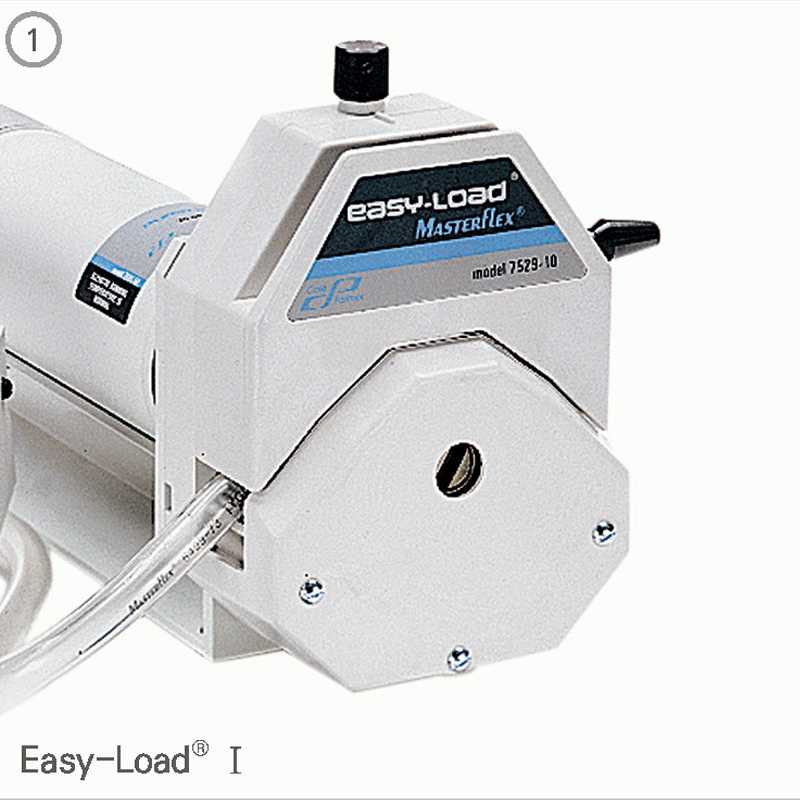

    Pump Head, Easy-Load® I
    Cat. NoModelTubing SizeRotor 재질
    P06-55-99107514-10LS13, LS14, LS16,LS25, LS17, LS18SS
    P06-55-29207514-12LS15 ,LS24SS

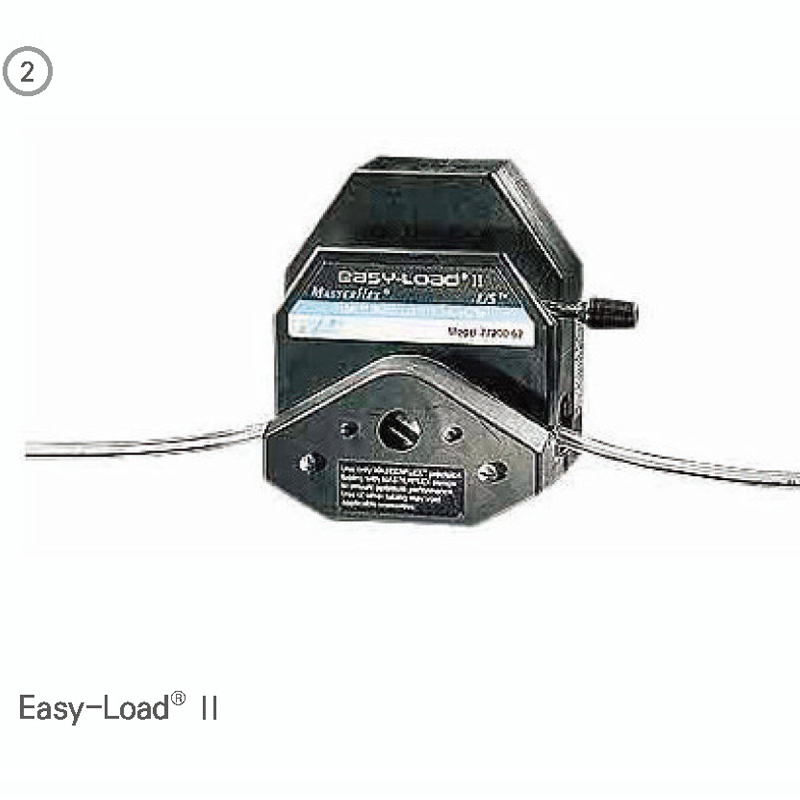

    Pump Head, Easy-Load® II
    Cat. NoModelTubing SizeRotor 재질
    P06-55-91477200-50LS13, LS14, LS16, LS25, LS17, LS18CRS
    P06-55-91777200-60SS
    P06-55-92077200-52LS15 ,LS24, LS35, LS36CRS
    P06-55-92377200-62SS
    Pump Head, Easy-Load® III
    Cat. NoModelTubing SizeRotor 재질
    P06-55-93077800-50LS13, LS14, LS16, LS25, LS17, LS18CRS
    P06-55-93477800-60SS
    P06-55-93877800-52LS15 ,LS24, LS35, LS36CRS
    P06-55-94277800-62SS
    Specification
    Speed (rpm)6 ~ 600 rpm3 ~ 300 rpm1 ~ 100 rpm
    Dimensionw216 X d254 X h216 mm
    Motor1/10 HP (75 W)
    Speed Requlation± 0.25% (1 rpm at 600 rpm, 0.1 rpm at 100 rpm)
    IP RatingIP33
    장착 가능한 Pump Head 수2ea4ea
    Power90 ~ 260V, 50/60Hz
    튜빙 종류에 따른 Flow Rate (ml/min)
    RPMPrecision Pump TubingHigh Precision Pump Tubing
    LS13LS14LS16LS25LS17LS18LS15LS24LS35LS36
    6 ~ 6000.36 ~ 361.3 ~ 1304.8 ~ 48010 ~ 100017 ~ 170023 ~ 230011 ~ 110018 ~ 180026 ~ 260034 ~ 3400
    3 ~ 3000.18 ~ 180.65 ~ 652.4 ~ 2405 ~ 5008.5 ~ 85011.5 ~ 11505.5 ~ 5509 ~ 90013 ~ 130017 ~ 1700
    1 ~ 1000.06 ~ 60.21 ~ 210.8 ~ 801.7 ~ 1702.8 ~ 2803.8 ~ 3801.8 ~ 1803.0 ~ 3004.3 ~ 4305.8 ~ 580
    • ● 같은 타입의 헤드 일지라도 사용 튜빙의 타입 (Precision or High Precision)에 따라 사용 헤드의 모델이 달라짐
