CF042-FO Cell Features and Benefits:

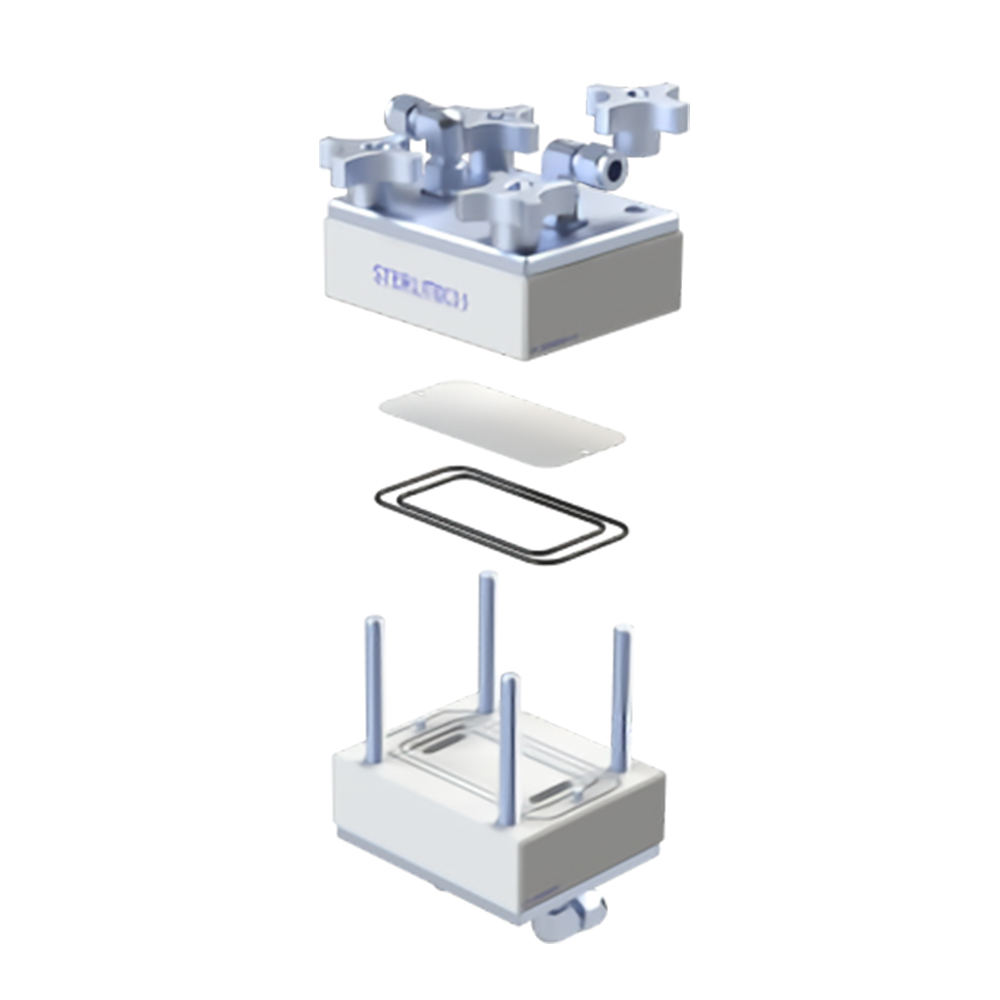

* Accepts polymeric flat sheet membrane coupons
* Mimics both laminar or turbulent flow conditions
* Provides fast and accurate performance data
* Offers judicious membrane use with small membrane active area
* CF042-FO cell has a membrane active area of 42 cm2 (6.5 in2)

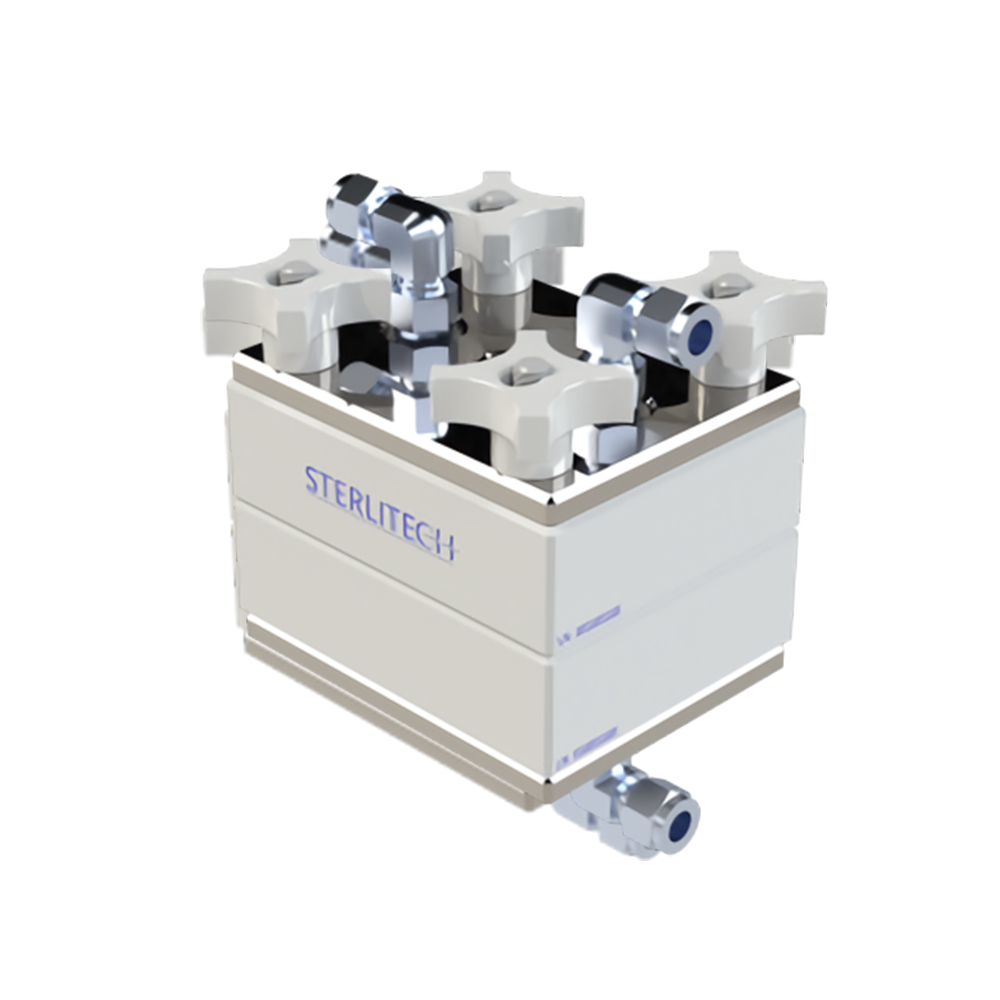

CF042-FO cell is available in Stainless Steel and Delrin with a maximum operating pressure of 1000 psi (69 bar),
which allows operators to conduct high pressure testings. CF042-FO cell is also available in Acrylics and PTFE with a maximum operating pressure of 400 psi (27.6 bar).
Acrylic CF042-FO provides a great opportunity to visually investigate the hydrodynamic conditions in the cell or the local fouling intensity.

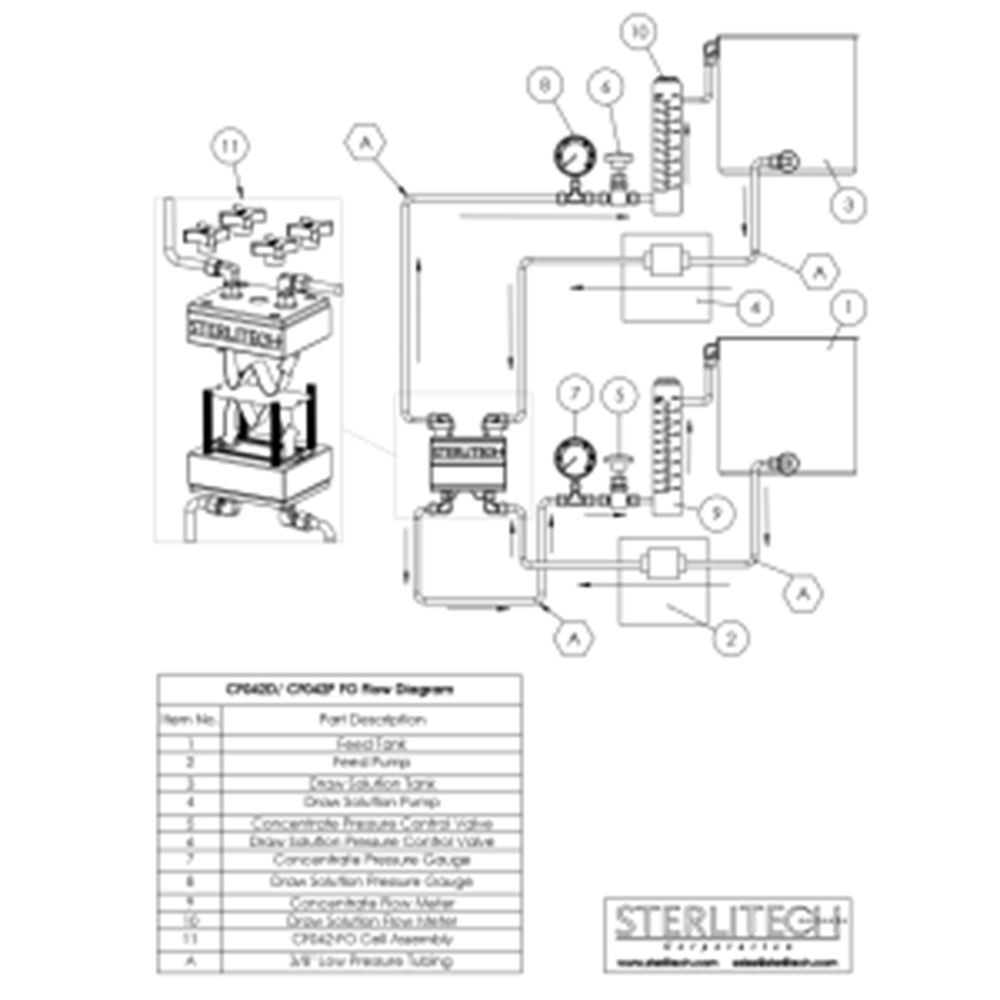

In order to operate the CF042-FO Cell additional parts and equipment are required, which include:
* Feed flow pump designed for high pressure, lower flow applications
* Feed spacers or permeate carriers which mimic hydrodynamic conditions of large scale membrane modules
* Feed and permeate tanks which connect to the cell
* Back Pressure Control valve to pressurize the cell
* 수입 필요하며 진행 이후 취소, 교환, 환불이 불가합니다.
* 미국 본사에 재고가 있을 경우 정기발주일(목요일) 이후 2~3주 소요됩니다.(백오더시 별도 안내)
