Silver Membrane Filter / 실버멤브레인필터

상품 선택옵션 1 개, 추가옵션 0 개

상품코드 1476189963
제조사 Sterlitech
판매사 (주)코리아사이언스
브랜드 -
배송비결제 구매금액이 100,000원 이하인 경우 배송비 3,500원이 자동 결제됩니다.
창닫기

선택옵션

선택
[45330] Silver Membrane Filters, 0.2 Micron, 13mm  + 1,659,500원
[45345] Silver Membrane Filters, 1.2 Micron, 47mm  + 1,227,200원
[SH12M] Silver Membrane Filter, 1.2 micron, 15mm  + 1,253,900원
[45326] Silver Membrane Filters, 3.0 Micron, 13mm  + 1,659,500원
[45332] Silver Membrane Filters, 3.0 Micron, 25mm  + 970,800원
[45338] Silver Membrane Filters, 3.0 Micron, 37mm  + 864,500원
[45344] Silver Membrane Filters, 3.0 Micron, 47mm  + 1,227,200원
[SH30M] Silver Membrane Filter, 3 micron, 15mm  + 1,253,900원
[45325] Silver Membrane Filters, 5.0 Micron, 13mm  + 1,659,500원
[45331] Silver Membrane Filters, 5.0 Micron, 25mm  + 970,800원
[45337] Silver Membrane Filters, 5.0 Micron, 37mm  + 864,500원
[45343] Silver Membrane Filters, 5.0 Micron, 47mm  + 1,227,200원
[45339] Silver Membrane Filters, 1.2 Micron, 37mm  + 864,500원
[45333] Silver Membrane Filters, 1.2 Micron, 25mm  + 970,800원
[45327] Silver Membrane Filters, 1.2 Micron, 13mm  + 1,659,500원
[45336] Silver Membrane Filters, 0.2 Micron, 25mm  + 970,800원
[45342] Silver Membrane Filters, 0.2 Micron, 37mm  + 864,500원
[45348] Silver Membrane Filters, 0.2 Micron, 47mm  + 1,227,200원
[45328] Silver Membrane Filters, 0.8 Micron, 13mm  + 1,659,500원
[45334] Silver Membrane Filters, 0.8 Micron, 25mm  + 970,800원
[45340] Silver Membrane Filters, 0.8 Micron, 37mm  + 864,500원
[45346] Silver Membrane Filters, 0.8 Micron, 47mm  + 1,227,200원
[45329] Silver Membrane Filters, 0.45 Micron, 13mm  + 1,659,500원
[45335] Silver Membrane Filters, 0.45 Micron, 25mm  + 970,800원
[45341] Silver Membrane Filters, 0.45 Micron, 37mm  + 864,500원
[45347] Silver Membrane Filters, 0.45 Micron, 47mm  + 1,227,200원
[SH50M] Silver Membrane Filter, 5 micron, 15mm  + 1,253,900원
위시리스트

관련상품

등록된 관련상품이 없습니다.

상품 정보

Silver Membrane













​​

​Silver Membrane Filter /

실버 멤브레인 필터









​

​

Silver metal membrane filters are used in a variety of filtration applications, and their ability to withstand extreme chemical and thermal stress makes them ideal laboratory filtration equipment for applications involving aggressive fluids and/or high temperatures.


Silver metal filter membranes are pure metallic silver (99.97% pure silver) and are available with particle retention ratings of 0.2 to 5.0 microns. These silver metal membrane disc filters and sheets are specified in a National Institute for Occupational Safety and Health (NIOSH) standard for the analysis of crystalline and amorphous silica, lead sulfide, boron carbide, and chrysotile asbestos. Sterlitech's silver metal membranes can be used as the collection media and subsequent x-ray diffraction substrate for quantifying unknown minerals and compounds. Start with a custom silver membrane sample pack here. We provide the filters and technical support to help you take your breakthrough product from an idea to a prototype, to commercial scale.

​

​

​

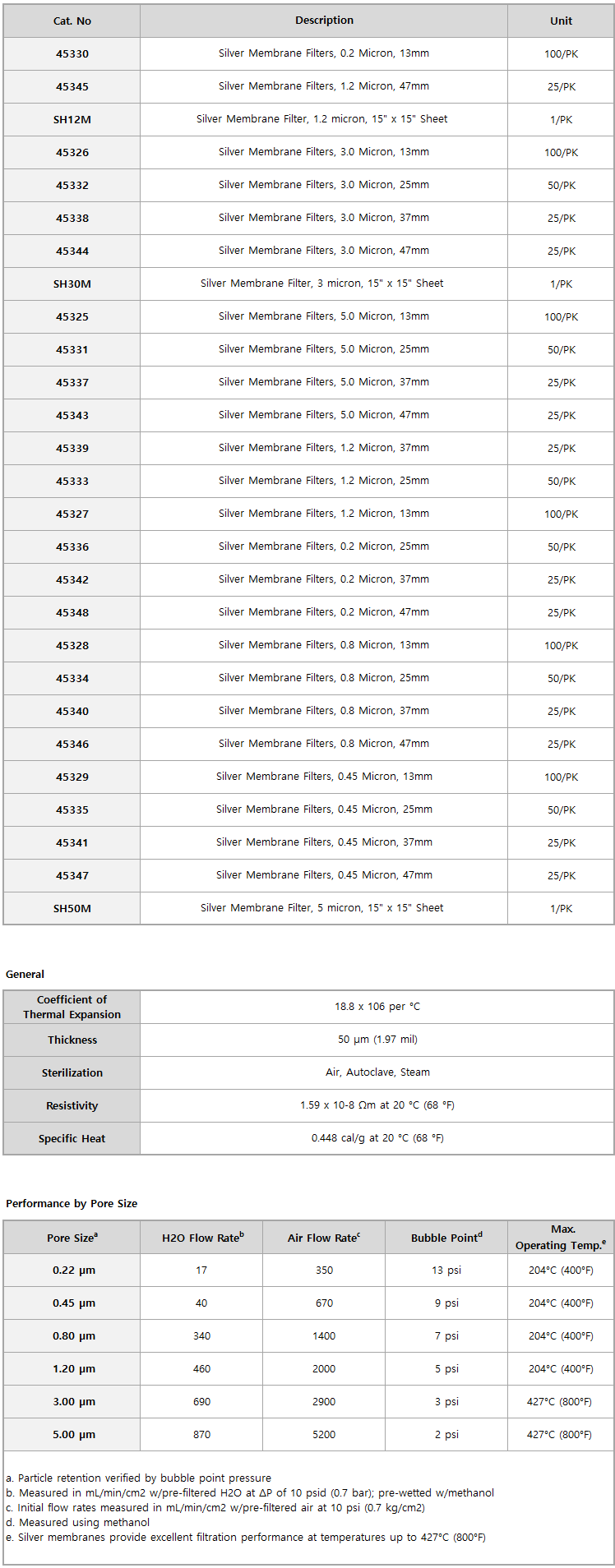

Specifications


General

Coefficient of Thermal Expansion: 18.8 x 106 per °C

Thickness: 50 µm (1.97 mil)

Sterilization: Air, Autoclave, Steam

Resistivity: 1.59 x 10-8 Ωm at 20 °C (68 °F)

Specific Heat: 0.448 cal/g at 20 °C (68 °F)

Performance by Pore Size

Pore SizeaH2O Flow RatebAir Flow RatecBubble PointdMax. Operating Temp.e
0.2 µm170.3513204°C (400°F)
0.45 µm400.679204°C (400°F)
0.8 µm3401.47204°C (400°F)
1.2 µm4602.05204°C (400°F)
3 µm6902.93427°C (800°F)
5 µm8705.22427°C (800°F)



a. Particle retention verified by bubble point pressure

b. Measured in mL/min/cm2 w/pre-filtered H2O at ΔP of 10 psid (0.7 bar); pre-wetted w/methanol

c. Initial flow rates measured in L/min/cm2 w/pre-filtered air at 10 psi (0.7 kg/cm2)

d. Measured using methanol

e. Silver membranes provide excellent filtration performance at temperatures up to 427°C (800°F)




Applications

Sterlitech™ Silver Membranes can be used for a wide variety of industrial hygiene, OSHA and laboratory applications.

Analytical

  • X-ray diffraction (XRD); silver metal membranes make excellent substrates for XRD analysis - silver purity 99.97% -- smooth surface, grayish-white color; highly reflective surface; absolute surface retention; low background noise; distinct diffraction peaks.
  • Scanning Electron Microscopy (EM); smooth; electrically conductive; extremely thin membrane 50 µm; easy sample preparation.

Gas

Liquid

  • Clarification (3.0-5.0 µm); Polishing (1.2 µm); Sterilization (0.2-0.8 µm)
  • Intrinsically Bacteriostatic - Silver does not allow the growth of bacteria and other microorganisms.
  • High-Performance Liquid Chromatography (HPLC) for a clearer; steadier baseline - may rule out interference from other sources of HPLC solvents (0.2, 0.45, and 0.8 &micor;m); tolerates high temperatures; gases and aggressive liquids -- Tetrahydrofuran (THF)



Viscous Fluid

  • Organic Carbon, inorganic, and suspended-sediment water - 0.45 µm, 47 mm, used by U.S. Geological Survey (USGS)
  • Lubrication oils for servomechanisms and precision instruments
  • Direct-line Applications with a Sprayer
  • High-purity fluids in semiconductor applications

Other Industrial

  • Chlorine Monitoring - Pulp and Paper Industry, disinfection; removal of tin and zinc in iron; chlorinating hydrocarbons; manufacturing synthetic rubber, plastics, pesticides, refrigerants; treating water and sewage
  • Electronics Industry - filter coolants, cleaning fluids, sterile air
  • Aircraft/Missile Fuels; critical fluids - resists alcohols, fuels, hydrocarbons, polyaromatic hydrocarbons (PAH), oils, alkalies, ethers
  • OSHA - coal tar pitch volatiles, 0.8 µm, 47 mm and 37 mm
  • Cold Sterilization (beverages, beer) - absolute particle-retention due to precise pore size
  • Soil and clay analysis
  • Fly Ash Sampling; Energy Research and Development Agency (ERDA)
  • Bacteria Sampling




SILVER MEMBRANE BIBLIOGRAPHY


  1. Baigal, M.D. “Application of Metallic Membrane Filters in the Clarification of Styrene-Butadiene Rubber Solutions for Gel Permeation Chromatography.” Analytical Chemistry 44.7 (1972): 1337-1338.
  2. Blanco, A.J., et al. “Microspectrophotometric Technique for Obtaining the Infrared Spectrum of Microgram Quantities of Atmospheric dust.” Atmospheric Dust 2 (1968): 327-330.
  3. Blumer, Max, et al. “An Integrated Gas Chromatograph – Mass Spectrometer System with Carrier Gas Separator.” American Chemistry Society 40 (1968): 1590-1592.
  4. Buesseler, K. O., et al. “Particle export during the Southern Ocean Iron Experiment (SOFeX).” Limnology and Oceanography 50 (2004): 311-327. 6 Aug 2009
  5. Bumsted, H.E. “Determination of Alpha-Quartz in the Respirable Portion of Airborne Particulates by X-Ray Diffraction.” American Industrial Hygiene Association Journal(1973): 150-158.
  6. Borrás, Ana, et al. “Supported Ag–TiO2 core–shell nanofibres formed at low temperature by plasma deposition.” Nanotechnology 17 (2006): 3518-3522. 6 Aug 2009
  7. Bye, Erik. “Quantitative Microanalysis of Cristobalite by X-ray Powder Diffraction.” Journal of Applied Crystallography 16 (1983): 21-23.
  8. Cassinelli, Mary Ellen. “Development of a Solid Sorbent Monitoring Method for Chlorine and Bromine in Air with Determination by Ion Chromatography.” Appl. Occup. Environ. Hyg 6.3 (1991): 215-226.
  9. Escoriza, Maria Fernanda, et al. “Raman spectroscopy and chemical imaging for quantification of filtered waterborne bacteria.” Journal of Microbiological Methods 66 (2006): 63-72. 6 Aug 2009
  10. Falgout, D.A., et al. “Determination of H2S Exposure by Dynamic Sampling with Metallic Silver Filters.” APCA Journal 18.1 (1968): 15-20.
  11. Glazier, Scott A., et al. “Autofluorescence detection of Escherichia coli on silver membrane filters.” Journal of Microbiological Methods 20 (1994) 23-27. 6 Aug 2009
  12. “Angular and Fibrous Particles in Lung in Relation to Silica-Induced Diseases.” International Archives of Occupational and Environmental Health 71.4 (1998): 263-269.
  13. Jordan, George V., et al. “The application of a porous metal membrane to the cold sterilization of beer.” Technical Quarterly of the Master Brewers Association of America7.1.
  14. Katan, T. et al. “Relating Structural Variables of Porous Electrodes.” Electrochemical Science and Technology 122.1 (1975): 77-80.
  15. Leroux, J., et al. “Proposed Standard Methodology for the Evaluation of Silicosis Hazards.” American Industrial Hygiene Association Journal (1973): 409-417.
  16. Leroux, J. and C.A. Powers. “Direct X-Ray Diffractions Quantitative Analysis of Quartz in Industrial Dust Films Deposited on Silver Membrane Filters.” Staub Reinhaltung der Luft (German Edition) 2.5 (1969).
  17. Lucas, G.S., et al. “Comparison of silver and polycarbonate membranes for measurement of erythrocyte filterability.” (1985).
  18. McMahon, John J. “Photocatalytic electrode and fuel cell.” United States Patent 20070231624 (2007). 6 Aug 2009
  19. Minneci, Peter, et al. “Molecularly-bonded Metal Microfiltration Membrane.” Journal of Membrane Science 39 (1987): 273-283.
  20. Moravec, Pavel. “Vapor Phase Synthesis of Zirconia Fine Particles from Zirconium Tetra-Tert-Butoxide.” Aerosol and Air Quality Research 7 (2007): 563-577. 6 Aug 2009
  21. “Oceanographers collect particles with membranes.” Membrane Technology (2002): 2. 6 Aug 2009
  22. “Osmonics adopts silver standard.” Membrane & Separation Technology News (1996).
  23. Plowman, C. and E. Hobson. “The Identification of Asbestos by x-ray Diffraction.” American Industrial Hygiene Association Journal 41.4 (1980): 299-304.
  24. Polliack, A., et al. “Comparison of air drying and critical point drying procedures from the study of human blood cells by scanning electron microscopy.” Scanning Electron Microscopy (1973): 529-534.
  25. Poppe, Lawrence J., et al. “A metal-membrane mount for x-ray powder diffraction.” Clays and Minerals 27.2 (1979): 152-153.
  26. Puledda, S. and A. Marconi. “Quantitative X-Ray Diffraction Analysis of Asbestos by the Silver Membrane Filter Method: Application to Chrysotile.” American Industrial Hygiene Association Journal 51.3 (1990): 107-114.
  27. Richards, Ronald T., et al. “A preliminary report on the use of silver metal membrane filters in sampling for Coal Tar Pitch Volatiles.” American Industrial Hygiene Journal(1967).
  28. Schubel, J.R. “On Suspended Sediment Sampling by Filtration.” Southeastern Geology 8.2 (1967).
  29. “Silver membranes aid oil exploration.” Membrane Technology (2006): 3. 6 Aug 2009
  30. Johnson, Richard D., et al. “Silver Membrane Filters as a Support for Infrared Analysis by Attenuated Total Reflection.” Analytical Chemistry (1966).
  31. Skogerboe, Rodney K., et al. “Trace Determination and Speciation of Cyanide by Atomic Absorption Spectroscopy.” Rosentreter (1976).
  32. Tuchoike, Brian E. “Determination of montnirullonite in small samples and implications for suspended-matter studes.” Journal of Sedimentary Petrology 44.1 (1974): 254-258.
  33. United States. U.S. Department of Health and Human Services. Collaborative Tests of Two Methods for Determining Free Silica in Airborne Dust. Washington: GPO, 1983.
  34. Verma, Dave K., et al. “A comparison of two methods of sampling and analysis for free crystalline silica alpha-quartz.” Appl. Occup. Environ. Hyg 7.11 (1992).






​






* 수입 필요하며 진행 이후 취소, 교환, 환불이 불가합니다.

* 미국 본사에 재고가 있을 경우 정기발주일(목요일) 이후 2~3주 소요됩니다.(백오더시 별도 안내)
