본제품
-
-
-

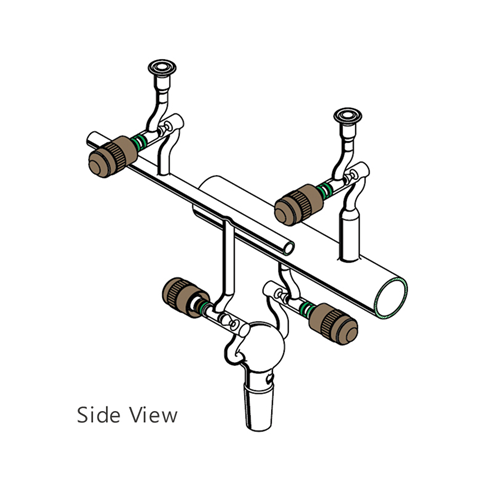

Vacuum Manifold, AIRFREE®
/ 진공 메니폴드, 4-port
■ 5-port Line과 유사함
■ 전체 사이즈 : w864×h610 mm
■ 구성 차이점
- A : 0 ~ 4 mm Valve
- B : #30 O-ring Joint Cap (Vacuum Bank 마개)
- C : #9 O-ring Gauging Port
- D : #9 O-ring Joint Cap (Gas Line 마개)
■ Complete Set
- 4 Port Vacuum Manifold (1ea), Pre-trap (1ea), Main Trap (1ea),
#28 Pinch Clamp (2ea), #35 Pinch Clamp (1ea), #50 Pinch Clamp (1ea),
#75 Pinch Clamp (1ea), #18 Pinch Clamp (4ea),
#112 Viton O-ring (4ea), #9 & #30 O-ring Joint Stopper (각1ea),
#223 Viton O-ring (1ea), #9 O-ring Joint to 3/8” Tubulation Adapter (1ea)
■ Chemglass
